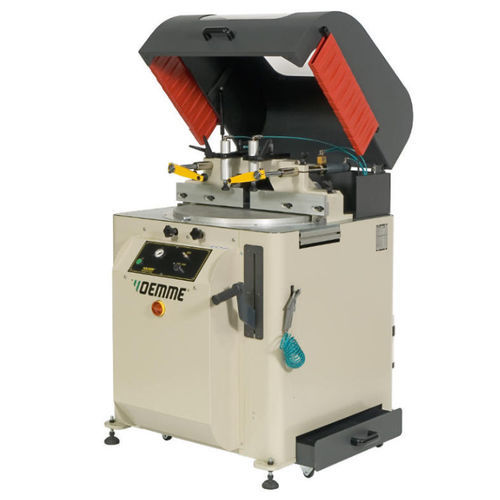

Circular sawing machine SH 400 MR

automatic

Single head sawing machine with ascending blade with manual blade feeding by means of a balance system for effort reduction, blade Ø400 mm and manual adjustment head rotation with mechanical locking device from 22,5° left and 0° right Technical details • Three-phase motor 1,5 Kw - 400V - 50Hz • 3750 rpm • Blade holder spindle diameter: 32 mm • Operating pressure: 6 - 7 bar • Manual adjustment head rotation with fixed positions 900 - 67,50 - 450 - 22,50 right and left and 00 right • Manual adjustment intermediate degrees with goniometer and mechanical locking device • Spray lubrication with variable flow with regulator on control panel • Vices locking device with different working pressure and safety power-assisted valves • Adjustable profile stop to increase cutting capacity • Overall dimensions: 900 mm (a) x 1150 mm (b) x 1430 mm (c) • weight: 309 Kg Standard equipment • Widia blade • Pair of vertical pneumatic vices • Pair of horizontal pneumatic vices with rotation automatic system • when unlocking • Filter group reducer + lubricator with air gun • Extractable chips collector • Device for connection to the vacuum cleaner • Installation, operation and maintenance manual • Service spanners
