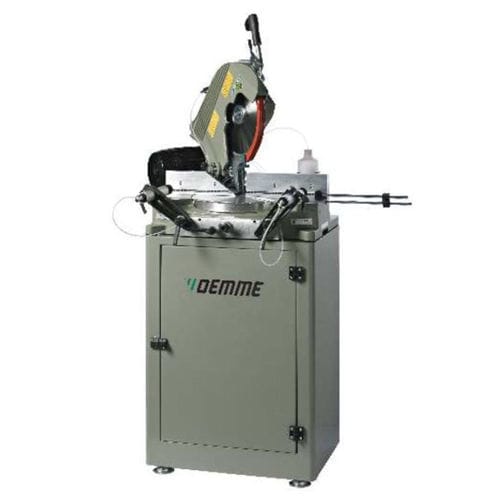

Circular sawing machine SH 400 Dautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Other characteristics
- automatic
- Circular saw blade diameter
400 mm
(16 in)
Description
Single head sawing machine with manual descending blade, blade Ø400 mm, pneumatic clamps and basement
TECHNICAL DETAILS
- Three-phase motor 2,2 Kw — 230/400V — 50/60 Hz
- 2890 rpm
- Blade holder spindle diameter: 30 mm
- Operating pressure: 7 bar
- Manual adjustment of the head rotating
-450 / 00 / + 45 and intermediate degrees
- Manual adjustment of the head tilting to 00 / 450 towards left
- Spray lubrication with variable flow
- Vices locking device with different working pressure and safety power-
assisted valves
- Overall dimensions: 730 mm (a) x 640 mm (b) x 1410 mm (c)
- Weight: 120 Kg
STANDARD EQUIPMENT
- Widia blade
- Pair of horizontal pneumatic vices
- Filter group reducer + lubricator with air gun
- Arrangement for connection to the vacuum cleaner
- Installation, operation and maintenance manual
- Service spanners
