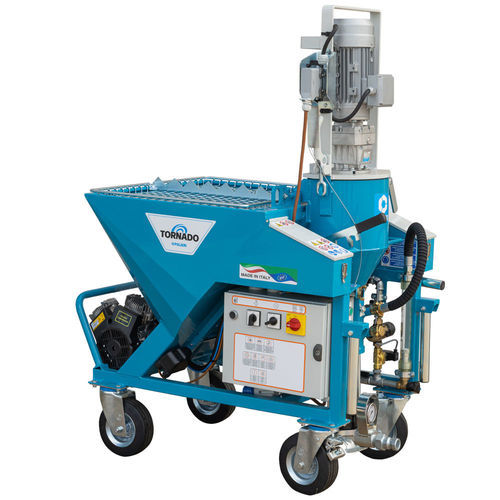

Progressing cavity pump TORNADO CLASSIC

plasterwith electric motormobile

Product overview
The TORNADO CLASSIC is a continuous plastering machine designed for spraying pre-mixed plasters based on gypsum, gypsum-lime and lime-cement, as well as finishing plasters, skim coats, colored plasters, adhesives and self-leveling screeds, with a maximum grain size of 3 mm. Structural plasters such as micro-concrete can be applied only with the three-phase version.

Main features
The machine is equipped with an electromechanical control panel for simple and reliable operation. The mixing chamber is removable and tilting for quick cleaning and maintenance, ensuring continuous operation. The 150-liter hopper, complete with safety grid, ensures safe material loading, while the cellular feed wheel guarantees constant and uniform feeding. Designed for on-site practicality, it features four swivel wheels for easy handling and two ergonomic handles for transport. The system keeps dry material separate from the mixing chamber to preserve mix quality and optimise performance.

Equipment

• Anti-grip
• Cleaning rod
• Water hose 19×26 – 40 m with GEKA coupling
• Electric cable 20 m neoprene 3×6 with plug
• Adapter + GEKA
• T-wrench with caps
• Cleaner
• Micro-concrete hose 25×37 – 15 m with couplings
• Air hose 13×19 – 16 m with GEKA
• Complete aluminum spray gun
• Accessory kit bag

Coating
All machines and equipment are powder-coated with thermosetting epoxy-polyester powders, ensuring high gloss, excellent weather resistance and environmental sustainability.

Optional

• Adhesives and finishing kit
• Joint filling kit
• Turbo mixer (recommended for thermal plasters)
• Lightweight plaster mixer (recommended for perlite and EPS plasters)
• Spray gun with lever connection

Technical specifications

• Model name: TORNADO CLASSIC
• Tank capacity: 150 L
• Voltage options: Single-phase 230 V 50 Hz / Three-phase 400 V 50 Hz
• Mixing chamber gearmotor: Single-phase 3 kW (320 rpm) / Three-phase 5.5 kW (400 rpm)
• Cell wheel gearmotor: 0.55 kW – 24 rpm
• Material flow rate: 8–26 L/min (depending on stator/rotor, hose length and product)
• Maximum service distance: up to 40 m (dependent on application factors)
• Loading height: 91 cm
• Dimensions (L×W×H): 111 × 72 × 155 cm
• Weight: 212 kg (Single-phase) / 249 kg (Three-phase)
• Standard accessories: hoses, spray gun, cleaning rod, cables and accessory kit

Notes
* Flow rate and service distance depend on product characteristics, stator/rotor, hose length, height and ambient temperature.
