Centrifugal pump VORTICEfor adhesivesfor self-levelling screedfor liquids
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for adhesives, for liquids, for self-levelling screed
- Operation
- with electric motor
- Mobility
- mobile
- Fluid specification
- for solids-laden fluids
- Voltage
- 230 V
- Other characteristics
- variable-speed, with electronic control, coated
- Flow
Min.: 0.48 m³/h
(16.95104 ft³/h)Max.: 1.56 m³/h
(55.09088 ft³/h)- Power
3 kW
(4.08 hp)- Length
1,000 mm
(39.37 in)- Width
590 mm
(23.23 in)- Height
1,590 mm
(62.6 in)- Weight
130 kg
(286.6 lb)
Description
Product overview

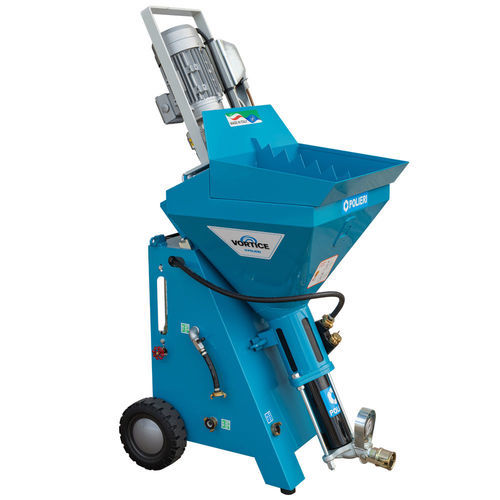

Compact continuous plastering pump designed for easy handling thanks to reduced dimensions and low weight. The machine can be disassembled into three parts for simpler transport and is suitable for confined work sites.
Main features
Equipped with a 70‑liter hopper, a tilting motor flange for straightforward cleaning, an integrated toolbox and an intuitive control panel. The polyurethane mixing chamber provides high wear resistance and extended service life.
Applicable materials
Not suitable for
Structural plasters such as micro-concrete are not applicable.
Equipment
Coating
All machines and equipment are powder-coated with thermosetting epoxy‑polyester powders to ensure high gloss, good weather resistance and environmental sustainability.
Optional
Technical specifications
Compact continuous plastering pump designed for easy handling thanks to reduced dimensions and low weight. The machine can be disassembled into three parts for simpler transport and is suitable for confined work sites.
Main features
Equipped with a 70‑liter hopper, a tilting motor flange for straightforward cleaning, an integrated toolbox and an intuitive control panel. The polyurethane mixing chamber provides high wear resistance and extended service life.
Applicable materials
- Pre-mixed gypsum-based plasters
- Gypsum-lime and lime-cement plasters
- Finishing plasters and skim coats
- Colored plasters
- Adhesives
- Self-leveling floor screeds (maximum grain size 2 mm)
Not suitable for
Structural plasters such as micro-concrete are not applicable.
Equipment
- Anti-grip
- Cleaning rod
- Water hose 19×26 – 40 m with GEKA coupling
- Electric cable 20 m neoprene 3×4 with plug
- Adapter + GEKA
- T-wrench with caps
- Micro-concrete hose 25×37 – 15 m with couplings
- Air hose 13×19 – 16 m with GEKA
- Complete aluminum spray gun
- Accessory kit bag
Coating
All machines and equipment are powder-coated with thermosetting epoxy‑polyester powders to ensure high gloss, good weather resistance and environmental sustainability.
Optional
- Adhesives and finishing kit
- Vibrator kit (recommended)
- Joint filling kit
- Turbo mixer (recommended for thermal plasters)
- Lightweight plaster mixer (recommended for perlite and EPS plasters)
- Spray gun with lever connection
Technical specifications
- Tank capacity: 70 L
- Power supply: 230 V - 50 Hz
- Engine thermal protection: Yes
- Mixing chamber gearmotor: 3 kW
- Variable speed: Yes
- Compressor: Yes
- Water pump: Yes
- Flowmeter: Yes
- Water shortage safety: Yes
- Stator/rotor kit: Mix 26
- Material flow rate: From 8 to 26 L/min*
- Maximum service distance: 40 m*
- Loading height: 102 cm
- Dimensions (LxWxH): 100 x 59 x 159 cm
- Total weight of the machine: 130 kg
- *Depending on product characteristics, stator/rotor, hose length, height and ambient temperature.
