Food sieve

for coffee beansfor flourperforated sheet metal

Description

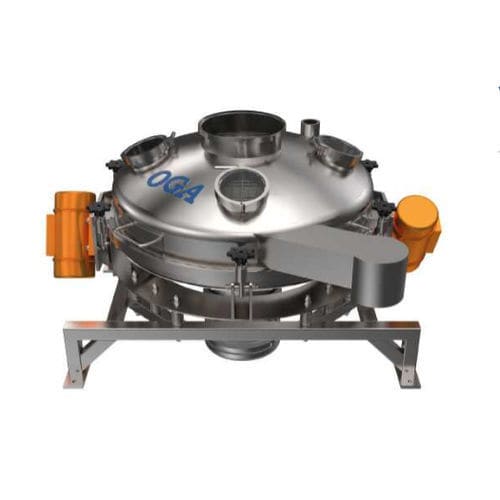

A vibratory sieve for pneumatic conveying systems separates, classifies and filters solid materials by particle size and shape using controlled vibration. It removes contaminants via a screen or mesh and is suitable for continuous handling of powders and granules in industrial processes.

Features

• Construction in Stainless Steel or Carbon Steel.
• Optional control from a control panel for operation management.
• Perimeter frame in Stainless Steel or Carbon Steel.
• Flexible couplings for inlet and discharge; option for BFM-type coupling.
• Designed for powder and granular materials with flow rates from 500 Kg/h to 20 Ton/h (per requirements).
• Mesh sizes available from 325 mesh to 3 mesh (stainless steel, per requirements).
• Installation height required between 900 mm and 1500 mm (per requirements).
• Eccentric-load vibrator motor: 220–440 VAC, 3Ph, 50–60 Hz.
• Motor electrical protection options: IP54 or IP65.
• Support system with dampers for vibration isolation.
• Inspection HandHole included in design.
• Closure system for fast and easy mesh replacement.

Types

• Circular Vibratory Sieve: Uses circular vibration to separate materials into multiple fractions; suitable for general screening applications.
• Linear Vibratory Sieve: Uses linear vibration for directional sorting and precise separation in process lines.
• High-Frequency Vibratory Sieve: Produces high-frequency vibrations to classify fine particles with high precision for demanding filtration tasks.
• Flexible Mesh Vibratory Sieve: Employs a flexible mesh that adapts to varying material types and provides versatile particle separation.

Industries Where Vibratory Sieves are Used

• Food industry: Removing contaminants and ensuring purity of products such as flour and sugar.
• Pharmaceutical industry: Filtering active ingredients and excipients to maintain product quality.
• Chemical industry: Classifying and purifying chemicals and additives.
• Plastics industry: Separating pellets and plastic components.
• Mining industry: Classifying minerals and removing impurities.
• Recycling industry: Separating recyclable from non-recyclable materials.

Technical specifications

• Materials: Stainless Steel or Carbon Steel construction options.
• Flow rate: designed for 500 Kg/h to 20 Ton/h (per requirements).
• Mesh sizes: from 325 mesh to 3 mesh (stainless steel, per requirements).
• Height: required installation height between 900 mm and 1500 mm (per requirements).
• Vibrator motor: eccentric-load type, 220–440 VAC, 3Ph, 50–60 Hz.
• Electrical protection: IP54 or IP65 options for motor.
• Support: damping system on supports to isolate vibrations.
• Inspection: HandHole for access and inspection.
• Maintenance: closure system for easy mesh replacement.
• Connections: flexible inlet and discharge couplings; option for BFM coupling.
• Control: integration with control panel possible for operational management.
