Pneumatic manipulator arm

vacuumfor liftingloading

Product overview

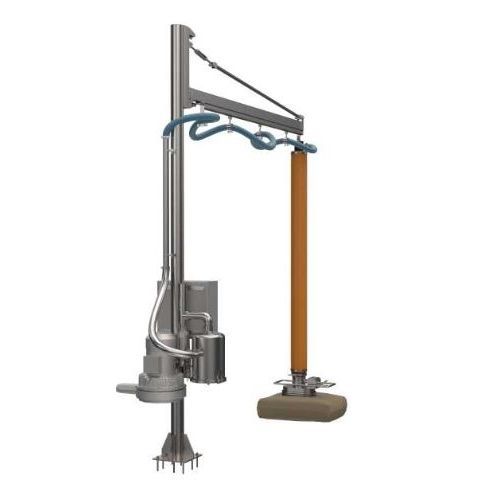

A pneumatic suction load handler PSLH-25-80 is a plant-grade device designed to lift, move and accurately position loads using a negative-pressure (vacuum) pneumatic system. It adheres to the load via suction elements and is suitable for handling delicate, fragile or irregularly shaped items in industrial production and logistics environments.

Features

• Control panel and support post available in Stainless Steel or Carbon Steel.
• Operation via control button panel including emergency stop.
• Designed to handle packages, cans, drums, roof tiles and sheets weighing between 25–80 kg.
• Throughput: 3–4 loads per minute (depending on application and configuration).
• Working area: up to 2600 mm radius with 180° rotation.
• Power supply: 220–440 VAC, 50–60 Hz, 3Ph.
• Vacuum generation by vacuum pump (negative pressure system).
• Safety filtration system for vacuum pump protection.
• Standard handling hose included.
• Load gripping nozzle manufactured in stainless steel.
• Compatible lifting modes: from pallets, hoppers or conveyor belts.
• Ergonomic design to reduce operator effort.

Types

• Vacuum cup load handler: Uses suction cups to create vacuum contact for effective lifting and transport of diverse materials.
• Articulating arm load handler: Equipped with an articulated arm to access different angles and positions, ideal for constrained workspaces.
• Multiple suction head load handler: Incorporates multiple suction heads to handle large loads or several pieces simultaneously to increase process throughput.
• Adjustable vacuum load handler: Allows vacuum intensity adjustment according to material type and load size for greater flexibility and control.

Applications

• Food industry: Gentle handling of bakery items, fruits and vegetables without surface damage.
• Pharmaceutical industry: Handling of sensitive packaging and components during production.
• Electronics industry: Transport of fragile electronic components such as PCBs.
• Automotive industry: Handling car parts and subassemblies during assembly and kitting.
• Plastics industry: Moving and positioning plastic parts and molds with precision.
• Packaging industry: Handling boxes, packages and elements on packaging lines.

Technical specifications

• Load range: 25–80 kg.
• Throughput: 3–4 loads per minute (depending on requirements and configuration).
• Working radius: up to 2600 mm with 180° rotation.
• Power supply: 220–440 VAC, 50–60 Hz, 3Ph.
• Vacuum generation: vacuum pump (negative pressure).
• Safety: filtration system for vacuum pump protection.
• Materials: control panel and support post in Stainless Steel or Carbon Steel; load gripping nozzle in stainless steel.
• Accessories: standard handling hose.
• Operation: control button panel with emergency stop; ergonomic design.
• Handling modes: lifting from pallets, hopper or conveyor belt.
