- Ohrdrufer SchlauchWeberei Eschbach GmbH

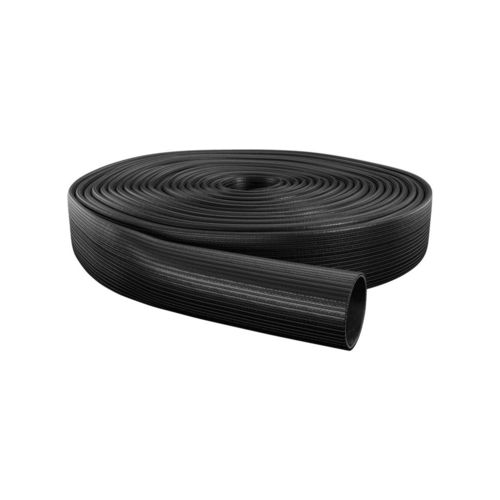

Chemical product hose OSW AGRIrubbernitrilePVC
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- rubber, nitrile, PVC, polyester
- Applications
- agricultural
- Other characteristics
- abrasion-resistant, smooth, UV-resistant, reinforced
- Inner diameter
Max.: 205 mm
(8.071 in)Min.: 52 mm
(2.047 in)- Outer diameter
Max.: 213 mm
(8.386 in)Min.: 57.6 mm
(2.268 in)- Pressure
15 bar, 20 bar, 25 bar
(217.557 psi, 290.075 psi, 362.594 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
inside: very smooth for minimum friction loss
jacket of 100 % high tenacity synthetic polyester yarn (reinforced construction), circular woven, embedded in a rubber compound provides optimum protection of the jacket
high-quality Nitrile/PVC compound is forced through the jacket in the extrusion process (standard colour: black and yellow; other on request), reinforced version
outside: longitudinal ribs for excellent abrasion resistance
high abrasion resistance and durability by longitudinal ribs → suitable for extreme conditions
resistant against slurry and many other chemicals
excellent tensile strength
minimum maintenance
extremely resistant to aging and ozone and UV
minimum friction loss because of very smooth inner lining
minimum elongation
