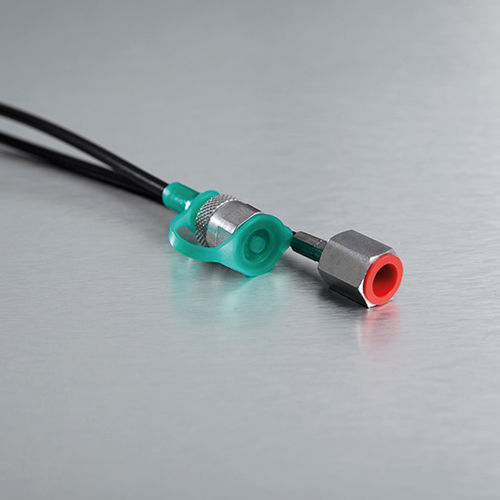

Hydraulic fitting MCS® 6400, 6500 - 6700threadedpolyamidearamid
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Material
- polyamide, aramid
- Other characteristics
- for hoses
- Diameter
Min.: 2 mm
(0.079 in)Max.: 8 mm
(0.315 in)- Operating pressure
320 bar, 500 bar, 630 bar
(4,641.21 psi, 7,251.89 psi, 9,137.38 psi)
Description
With Oleotec hoses and fittings, pressure can be checked while hydraulic systems are at full pressure. Micro-fittings and micro-bore hoses can bear a working pressure of max. 630 bar. All fittings are designed by Oleotec and supplied with ferrule included.
The MCS® micro-hoses consist of a polyamide core and cover, with a hardened braid made of aramid fibre, ensuring a perfect sealing. The connection is self-sealing and will not loosen under vibration or pressure peaks. Our production department is specialised in assembling DN2 and DN4 micro-hoses.
