Electrically-powered pack unit E108
oil

electrically-powered pack unit
electrically-powered pack unit
electrically-powered pack unit
Add to favorites
Compare this product


Characteristics

Power source
electrically-powered
Applications
oil
Operating pressure

700 bar
(10,153 psi)

Nominal power

Min.: 0 kW
(0 hp)

Max.: 1 kW
(1.4 hp)

Flow rate

Min.: 0.45 l/min
(0.12 us gal/min)

Max.: 1.4 l/min
(0.37 us gal/min)

Tank capacity

1 l, 3 l
(0.3 gal, 0.8 gal)

Description

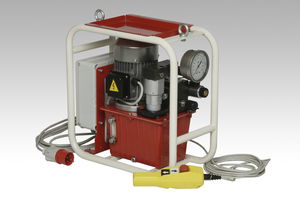

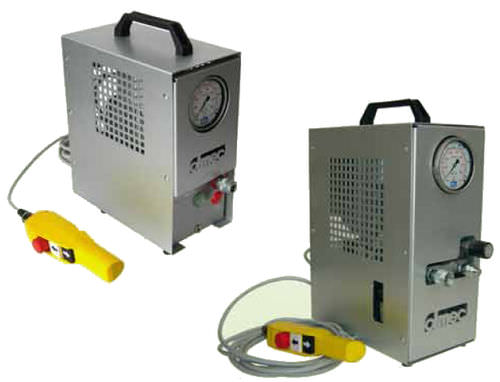

Olmec E108 electric motor high-pressure power units with piston pump are compact and lightweight. They have been developed to deliver excellent service with single and double-acting hydraulic tools. They are easy to use thanks to a remote control with 3m. cable. Two tank options are available - 1 Ltr. (MINI) or 3 Ltr. They feature a protective framework making them suitable for all environments. They are available with motor in the range of 0,37 kW to 1,1 kW at 2.800 rpm and operating voltage of 230V 50Hz single-phase. The E108 units include an operator-controlled relief valve. Two options are available -- up to 700 bars on line A and on the return line B up to 200 bar (100 bar standard). The option needs to be indicated at the time of order (double-acting version). The power unit provides optional hydraulic system accessories.
