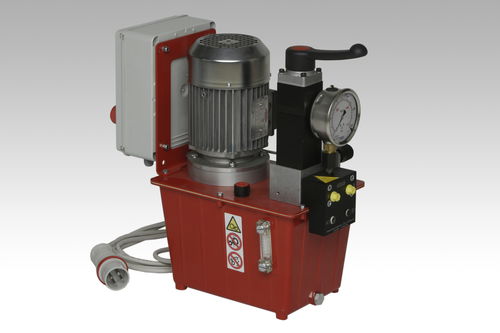

Electrically-powered pack unit E208oil
Add to favorites
Compare this product
Characteristics
- Power source
- electrically-powered
- Applications
- oil
- Operating pressure
Min.: 60 bar
(870 psi)Max.: 700 bar
(10,153 psi)- Nominal power
1 kW, 2 kW
(1.36 hp, 2.72 hp)- Flow rate
0.95 l/min
(0.25 us gal/min)- Tank capacity
10 l
(2.64 gal)
Description
Electric motor high-pressure power units with two-stage axial piston pump (BP 60 bar - HP 700 bar) are designed to provide optimal service in all hydraulic applications, thanks to their compact size and light weight.
Equipped with 6 Ltr.or 10 Ltr. tank are available with different types of operation, 3 or 4-way, to power single or double-acting circuits. The two relief valves and the oil pressure gauge allow different pressures on the A and B lines.
Available with motor of 1.1 kW at 2.800 rpm and operating voltage 230V 50Hz single-phase or 1.1 kW at 2.800 rpm and operating voltage 230-400V 50Hz three-phase.
The following optional accessories are available for the power unit:
- tanks of various capacities
- protective and transport framework
- remote control with 3 m. cable
- hydraulic system accessories
