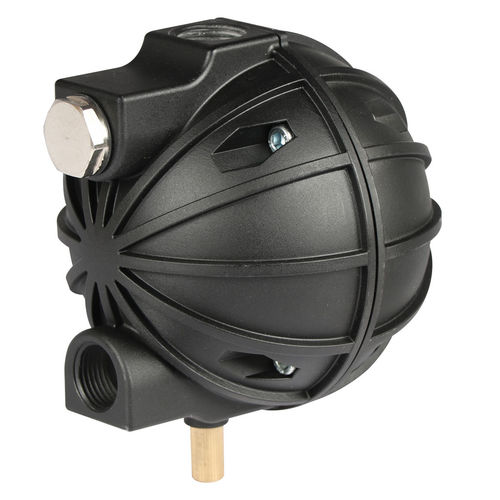

Condensate drain AOK 13PA
automaticmechanicalcompact

condensate drain
condensate drain
condensate drain
Add to favorites
Compare this product


Characteristics

Medium
condensate
Operational mode
automatic
Type
mechanical
Other characteristics
compact, for air filtration, for refrigeration, for tanks
Operating pressure

Min.: 1 bar (15 psi)

Max.: 13 bar (189 psi)

Discharge capacity

Min.: 0 kg/h (0 lb/h)

Max.: 167 kg/h (368 lb/h)

Operating temperature

Min.: 2 °C (36 °F)

Max.: 65 °C (149 °F)

Description

Automatic mechanical condensate drain AOK 13PA has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. The unit can be installed as external drain on any application specified below. Condensate accumulates in reservoir and when the level is high enough condensate is being discharged from the system without any air losses. Direct acting valve is operated by precise level-controlled floater which assures reliable and efficient operation. For any other technical gas please contact us or your local dealer. Automatic mechanical condensate drain AOK 13PA can be used in variety of applications. For applications not listed please contact us or your local dealer. Characteristics: • operating pressure: 13 bar • drain capacity: 167 l/h • connections: ½`` • operating temp. range: 1,5 to 65 °C • housing material: PA6 Applications • air compressor (piston or screw) • after-cooler • cyclone condensate separator • pressure vessel/air tank • air dryer • air filter
