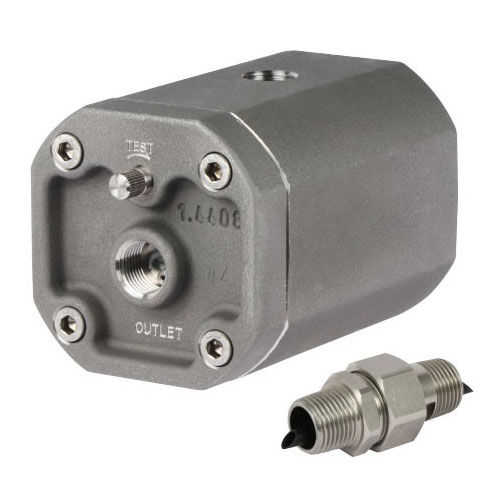

Condensate drain AOK 50SS
automaticfloatfor air filtration

condensate drain
condensate drain
Add to favorites
Compare this product


Characteristics

Medium
condensate
Operational mode
automatic
Type
float
Other characteristics
for air filtration, for tanks
Operating pressure

Max.: 50 bar
(725 psi)

Min.: 8 bar
(116 psi)

Operating temperature

Max.: 65 °C
(149 °F)

Min.: 2 °C
(36 °F)

Description

AOK50SS has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. The unit can be installed as external drain on any application specified below. Condensate accumulates in the stainless steel reservoir and is discharged from the system when the level is high enough. A direct acting valve is operated by a precise level controlled floater which assures reliable and efficient operation. Thanks to its robust stainless steel housing AOK50 SS is suitable for heavy duty applications. On the front, the AOK50 SS, is also equipped with a separate manual drain for venting. Applications • cyclone condensate separator • air filter
