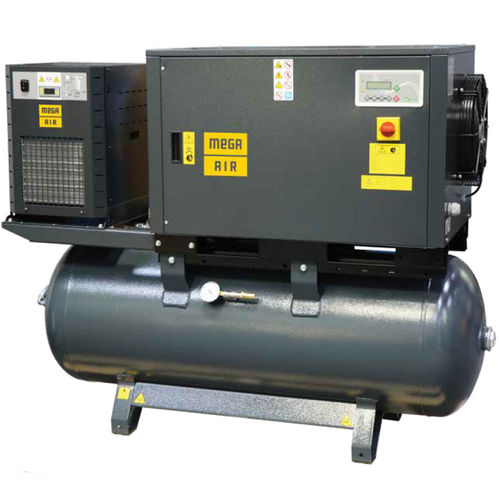

Screw compressor MA SD 7,5-15 VS /BDK
airelectricstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
with tank, high-efficiency, direct-drive, high-performance, energy-saving, variable-speed, with refrigerant dryer, electric
Pressure

Max.: 13 bar (188.55 psi)

Min.: 8 bar (116.03 psi)

Flow

Max.: 46.8 m³/h (1,652.73 ft³/h)

Min.: 10.2 m³/h (360.21 ft³/h)

Power

Max.: 15 kW (20.39 hp)

Min.: 7.5 kW (10.2 hp)

Description

HIGH-PERFORMANCE ELECTRIC MOTOR The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community. This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product. DRIVING SYSTEM Direct-driven compressors with a 1:1 ratio. This means that the air end and motor, directly connected via a coupling, rotate at the same speed. This not only reduces energy consumption and maintenance need, but it also decreases the level of noise. The use of high-efficiency motors and the possibility of adjusting the energy consumption to the actual air intake provides an over 20 % yearly saving if compared to the performance of traditional compressors. NOISE KEPT AT A MINIMUM MA SD is fitted with a professional grade double thickness soundproofing foam with fire retardant and oil resistant characteristics for maximum protection and easy cleaning.
