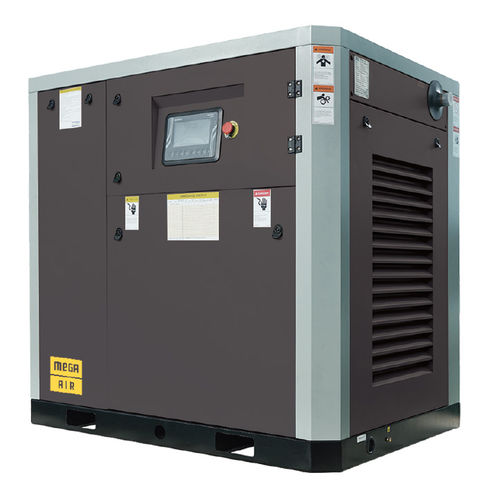

Screw compressor MA SD 75-315 VS
airelectricstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, high-efficiency, direct-drive, high-performance, energy-saving, variable-speed
Pressure

7.5 bar, 10 bar, 13 bar (108.78 psi)

Flow

Min.: 150 m³/h (5,297.2 ft³/h)

Max.: 842 m³/h (29,734.95 ft³/h)

Power

Min.: 75 kW (101.97 hp)

Max.: 315 kW (428.28 hp)

Description

Mega Air direct series variable-speed compressors drive the motor with the frequency converter to adjust the compressor operation speed according to your requirements and save up to 35 % energy. Thanks to its high-quality equipment and excellent engineering in its design, it provides a very efficient and flexible use as per requirements. Responds to all requirements between 75 and 315 kW. ELECTRONIC CONTROL MEGA AIR rotary screw compressors are equipped with easy-to-use, robust and long-lasting microprocessor controllers with communication capabilities as per the product line to ensure smooth operation and uninterrupted production. SCREW BLOCK Patented and durable screw block that provides high-capacity of air, and that is specially selected for each model’s capacity requirement Production of air with less loss of air, thanks to the new rotor profiles, and lower torque requirements. New generation bearing design with increased load carrying capabilities.
