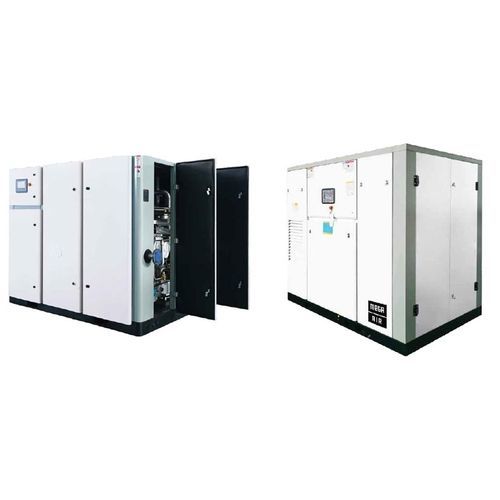

Oil-free compressor MA OF 55-280 series
screwairelectric

oil-free compressor
oil-free compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for medical applications, for food applications, for chemical applications, for the petrochemical industry
Applications
precision, laboratory, process, discharge, service, for bottles, for pharmaceutical applications, for machines, for automobiles, for robots, high-purity, for automation, for the gas industry, for medical devices, for gas stations, for packaging
Voltage
400 V
Other characteristics
high-efficiency, heavy-duty, high-performance, energy-saving, two-stage
Pressure

8 bar, 10 bar
(116.03 psi, 145.04 psi)

Flow

Max.: 2,790 m³/h
(98,527.92 ft³/h)

Min.: 462 m³/h
(16,315.38 ft³/h)

Power

Max.: 280 kW
(380.69 hp)

Min.: 55 kW
(74.78 hp)

Width

Max.: 2,280 mm
(90 in)

Min.: 1,580 mm
(62 in)

Height

Max.: 2,110 mm
(83 in)

Min.: 1,880 mm
(74 in)

Weight

Max.: 5,800 kg
(12,786.8 lb)

Min.: 2,750 kg
(6,062.7 lb)

Noise level

Max.: 85 dB

Min.: 77 dB

Description

Whether for the semiconductor, food, pharmaceutical or automotive industries: our two-stage, oil-free compression rotary screw compressors tirelessly prove that process-sure purity and efficiency do indeed go hand in hand – even in extreme conditions. Uncompromising efficiency – Efficient compression with “Ultracoat” Service-friendly design – Maximum machine availability, minimal inspection time. KEY BENEFITS • Increasing the productivity of your installation, with optimized compressed • air solutions adapted and designed to match the needs of our customers; • Peace of mind – zero risk of contamination of your final product; • Robustness and reliability for harsh environments thanks to trusted and world class suppliers and the use of the highest quality materials. TWO STAGE OIL-FREE AIREND DESIGNED FOR BETTER EFFICENCY AND FOR CLASS 0 The two stage GHH oil-free air end, give reliability and the best quality on the market. Zero risk of contamination of the final product. The two-stage design leads to enhanced efficiency and higher outputs when compared to single compression airends. The two-stage airend leads to lower noise, lower vibration and increased efficiency.
