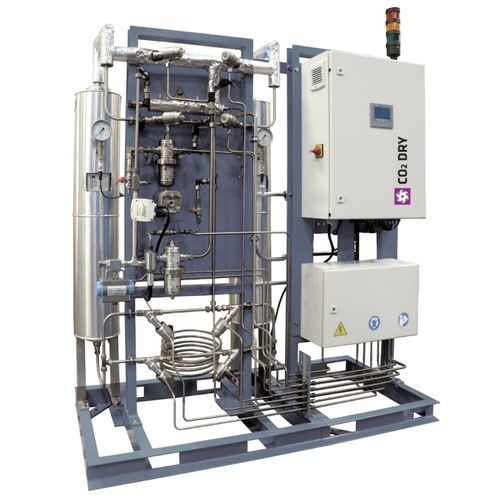

Adsorption with heat compressed CO2 dryer

Compressed Carbon Dioxide Dryers (CO2 Dryers) are designed for continuous separation of water vapour from compressed carbon dioxide, thus lowering its pressure dew point. Carbon Dioxide is an inert gas which can be highly corrosive, depending on its level of humidity. Compressed Carbon Dioxide Dryers (CO2 Dryers) are therefore normally custom made, to meet specific project requirements. Several versions are available, based on operating pressure, temperature, requested pressure dew point and level of humidity. Depending on this last criteria, the dryer's materials will need to be modified. The type of regeneration is Heat Regenerated. Depending on the existence and type of available fluids to conduct this regeneration/cooling, we then adapt the components of the CO2 Dryer, to ensure that a strict minimum of gas will be lost during the regeneration phase. Characteristics of CO2 adsorption dryers • operating pressure: 4 to 40 bar • operating temperature range: 1,5 to 65 °C • connections: DN80 to DN350 • flow rate: 100 to 12550 Nm3/h Applications • Bottling plant • Market gardening (Greenhouses) • Fire extinguishing • Refrigeration • Water treatment • Inerting Required data to prepare a quotation • Inlet pressure • Inlet flow rate • Inlet temperature • Inlet water content • Outlet required Pressure Dew Point (PDP) • Availability of external dry gas for regeneration/cooling. If yes temperature and dew point of the gas. • Availability of water for regeneration/cooling. If yes temperature of the cooling water.
