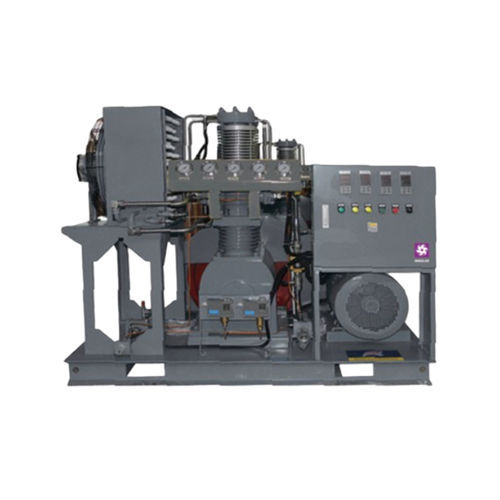

Reciprocating compressor booster station OB 3-60

oxygenmulti-stage

Overview
BOOSTERS OB 3-60 series high-pressure reciprocating oxygen booster compressors are designed to boost oxygen pressure up to 150 bar. The series covers maximum flow capacities from 3 to 60 m³/h and is intended for applications where oxygen is compressed from a suction pressure of 3 to 4 bar.

Additional information
The compressors are offered with 2 or 4 compression stages depending on the model and are designed for operation on a 380 V / 50 Hz power supply. Filling ramps are available for 4, 6, 8, 10, 20 and 36 cylinders to support cylinder filling workflows.

Main features

• High-pressure reciprocating oxygen booster compressors
• Maximum discharge pressure: 150 bar
• Flow capacity range: 3 to 60 m³/h
• Suction pressure range: 3 to 4 bar
• 2 or 4 compression stages (model dependent)
• Power supply: 380 V / 50 Hz
• Models available from OB 3-150 to OB 60-150
• Filling ramps available for up to 36 cylinders
• Designed for oxygen pressure boosting and cylinder filling applications

Characteristics / Technical specifications

• Series: OB 3-60 series
• Type: High-pressure reciprocating oxygen booster compressor
• Maximum discharge pressure: 150 bar
• Flow capacity: 3 to 60 m³/h
• Suction pressure: 3 to 4 bar
• Compression stages: 2 or 4 (model dependent)
• Power supply: 380 V / 50 Hz
• Filling ramp options: configurations for 4, 6, 8, 10, 20, 36 cylinders
• Intended application: oxygen pressure boosting and cylinder filling
