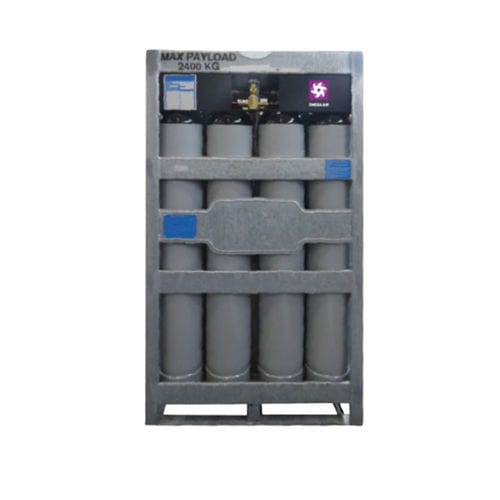

High-pressure gas storage system VBC 8-20

Product overview
The VBC 8-20 vertical bundles are designed for storage of high-pressure nitrogen (N₂) and oxygen (O₂) in multiple-cylinder configurations. Available configurations include 8, 12, 16 and 20 cylinders with maximum working pressure options of 200 bar or 300 bar.

Included components
Each bundle is supplied complete with cylinders, TPED certificate, two double standard valves, copper manifold piping and brass fittings. Versions with an integrated pressure regulator and manometer are available as options.

Main features

• Vertical, space-saving multi-cylinder arrangement
• Suitable for high-pressure storage of N₂ and O₂
• Configurations: 8, 12, 16 or 20 cylinders
• Maximum working pressure: 200 bar or 300 bar
• TPED certification provided
• Two double standard valves included for isolation and maintenance
• Copper piping with brass fittings for gas distribution
• Optional integrated pressure regulator and pressure gauge
• Built for industrial high-pressure gas storage applications

Technical specifications

• Model: VBC 8-20
• Application: High-pressure storage for nitrogen (N₂) and oxygen (O₂)
• Available configurations: 8, 12, 16, 20 cylinders
• Maximum working pressure options: 200 bar; 300 bar
• Certificates: TPED certificate included
• Valves: 2× double standard valves included
• Piping & fittings: Copper manifold piping and brass fittings included
• Optional equipment: Integrated pressure regulator and manometer available
• Design intent: Vertical multi-cylinder bundles for compact high-pressure gas storage
