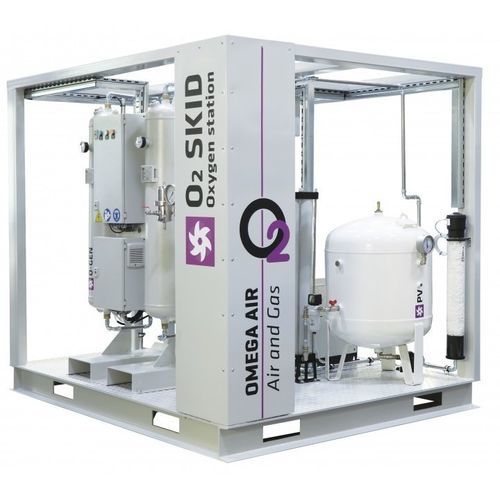

Industrial oxygen generator O2 SKID

PSAcontainerizedon skid

Product overview
O2 SKID is a skid-mounted oxygen generation station built on the Air+ compressed air SKID platform. It integrates compressed air preparation and PSA oxygen production modules to deliver oxygen on demand for industrial applications.

PSA technology
The O-GEN series uses Pressure Swing Adsorption (PSA) to extract oxygen from ambient air. Compressed and treated air passes through molecular sieve beds that adsorb nitrogen and other gases while allowing oxygen to be delivered as product gas. Adsorbed gases are vented during depressurization and the beds are purged prior to the next cycle. O-GEN generators employ paired molecular sieve beds that alternate adsorption and regeneration to ensure continuous oxygen flow; with correct maintenance the sieve beds offer an extremely long service life.

Characteristics
operating pressure: 1 to 150 barg
operating temperature range: on request
connections: on request
flow capacity: on request

Complete station - Components

• Air+ components:
  • compressor(s)
  • compressed air filtration
  • moisture separation
  • compressed air drying
  • water/oil separation
• O2 production components:
  • activated carbon tower
  • oxygen PSA generator
  • oxygen pressure tank
  • oxygen high-pressure compressor (optional)

Engineering and design
Units can be supplied as skid- or container-based packages and engineered to comply with various codes (PED, ASME, DNV, ABS, NR13, AS1210, etc.) according to project requirements.

Technical specifications

• Product type: Oxygen station (skid-mounted)
• Platform: Air+ compressed air SKID
• Oxygen generation: Pressure Swing Adsorption (PSA) — O-GEN series
• Molecular sieve configuration: modules of two beds alternating adsorption and regeneration
• Sieve bed lifetime: very long under correct operation and maintenance
• Operating pressure: 1 to 150 barg
• Operating temperature range: on request
• Connections: on request
• Flow capacity: on request
• Typical components: compressors, filtration, moisture separation, drying, water/oil separation, activated carbon tower, PSA generator, oxygen pressure tank, optional high-pressure compressor
• Design codes supported: PED, ASME, DNV, ABS, NR13, AS1210 (examples)
