FMCW radar level transmitter / for liquids / for storage tanks
LVRD10 series

Add to MyDirectIndustry favorites
Compare this product
FMCW radar level transmitter / for liquids / for storage tanks FMCW radar level transmitter / for liquids / for storage tanks - LVRD10 series
{{requestButtons}}

Characteristics

  • Technology:

    FMCW radar

  • Medium:

    for liquids

  • Applications:

    for storage tanks

  • Level range:

    3 m (9'10")

  • Process pressure:

    Max.: 17 bar (246.56 psi)

    Min.: -1 bar (-14.5 psi)

  • Process temperature:

    Max.: 150 °C (302 °F)

    Min.: -40 °C (-40 °F)

Description

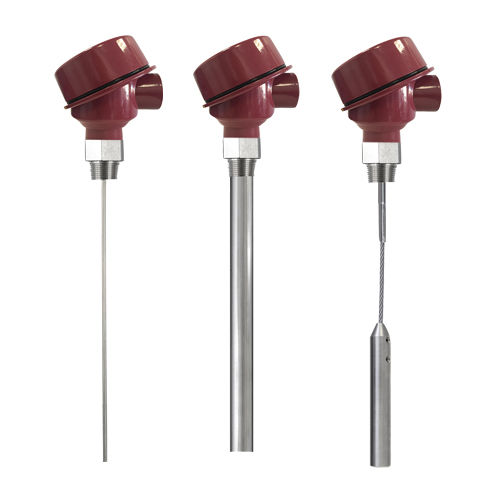

The LVRD10 Series of general purpose guided wave radar level transmitters provide continuous level measurement with a 4 to 20 mA signal output. Offered in three probe (rod, coaxial or cable) configurations up to 3 metres long for the rod and coaxial and 5.5 m for the cable design. The sensor is configured using the easy, yet powerful software (free download at OMEGA).

The contact liquid level sensor is intended for low corrosive chemical, waste, oil or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select the sensor for easy application conditions with light agitation, condensation or vapor, and installation in a tank adapter or flange fitting.

Specifications
Housing
Range: Rod/coaxial; 3.0 m (9.8')
Cable: 5.5 m (18.0')
Dead Band: 10 cm (4")
Accuracy: ±3 mm (0.118")
Repeatability: < 2 mm (0.08")
Resolution: 2
Configuration: PC Windows® USB 2.0
Supply Voltage: 10 to 30 Vdc
Signal Output: 4 to 20 mA, 3-wire, 22 mA maximum
Consumption: < 50 mA at 24 Vdc
Signal Fail Safe: 4 to 20 mA, 21 mA or hold last value
Process Temperature: -40 to 150°C (-40 to 302°F)
Pressure: -1 to 17 bar (-14.5 to 250 psi)
Enclosure: Aluminum with single conduit
Enclosure Rating: NEMA 4 (IP66)
Conduit Entrance: ½ NPT
Antenna Material: 316L SS
Feed Through Material: 316L SS and peek
Process Mount: ¾ NPT or ¾ G
Classification: General purpose
Compliance: CE, RoHS
