Scissor lift KAR 80
electro-hydraulicfor trucks

scissor lift
scissor lift
Add to favorites
Compare this product


Characteristics

Type
scissor
Operation
electro-hydraulic
Applications
for trucks
Lifting height

Max.: 1,950 mm (76.772 in)

Min.: 260 mm (10.236 in)

Description

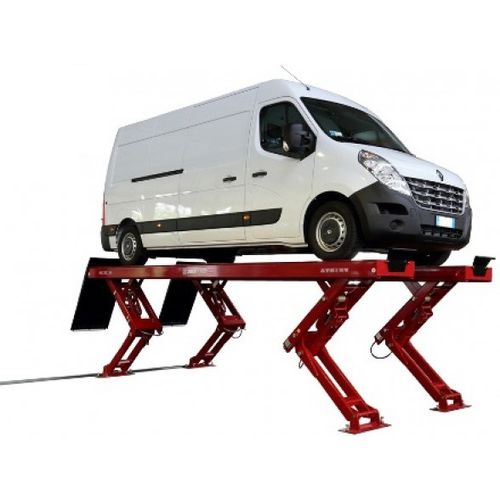

The perfect solution for medium weight vehicles! Electro-hydraulic pantograph lift, vertical lifting, uncluttered ground, ideal for maintenance and lifting of light industrial vehicles. With sturdy and compact structure, this lift presents a perfectly stable lane, synonymous of safety and long term reliability. The maximum freedom of movement under the lane and on the area in front of the lift is granted by the particular structure of this lift. The lift is already consistent with European standard EN 1493 of August 2010. Product Description Versions: Above ground / Flush mount Service (N) Wheels alignment (CT) Key Features: Capacity: 8.000 kg H. lift closed = 260 mm Standard platforms lenght: 6.000 mm / 7.000 mm Electronic balancing system with automatic leveling Safety devices: Mechanical locks on each cylinder Counterbalancing valve on each cylinder slave Five max. pressure valves Photocells for alignment Low voltage controls Accessories: Air kit Light Kit Winter kit Lifting traverses Automatic pit covering platforms for flush mount version
