Scissor lift Kar 200
electro-hydraulic400Vfor trucks

scissor lift
scissor lift
Add to favorites
Compare this product


Characteristics

Type
scissor
Operation
electro-hydraulic
Voltage
400V
Applications
for trucks, for buses
Lifting height

Max.: 2,040 mm (80.315 in)

Min.: 360 mm (14.173 in)

Description

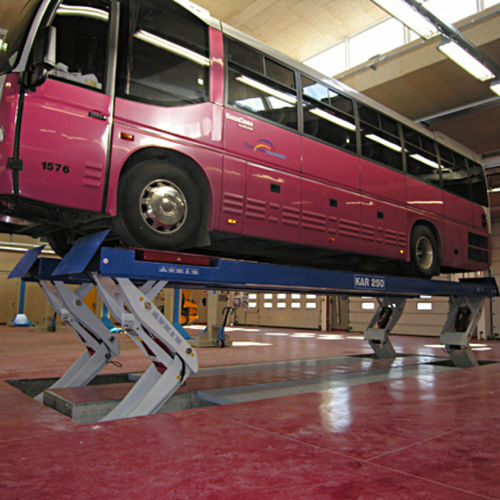

The family of KAR expands! Now even bus has its KAR Electro-hydraulic pantograph lift, vertical lifting, uncluttered ground, ideal for maintenance and lifting of buses. With sturdy and compact structure, this lift presents a perfectly stable lane, synonymous of safety and long term reliability. No base and no mechanical connection on ground, these are the main characteristics of the lift structure which grants maximum freedom of movement under the lane and on the front area. The lift is already consistent with European standard EN 1493 of August 2010. Description: Versions: Above ground Flush mount Key features: Capacity: 20.000 Kg H. lift closed: 360 mm Standard platforms length: 9.000 mm – 10.000 mm – 11.000 mm Electronic balancing system with automatic leveling Safety devices: Mechanical locks on each cylinder Counterbalancing valve on each cylinder slave Five max. pressure valves Photocells for alignment Low voltage controls “Dead man” controls Optional: Air kit Light Kit Winter kit Lifting traverses Lanes with non-slip treatment (upon request) Automatic pit covering platforms for flush mount version Special ramps L=3.500 mm for above ground version
