inspection software / control
SVScout

Add to MyDirectIndustry favorites
inspection software / control inspection software / control - SVScout
{{requestButtons}}

Characteristics

  • Function:

    inspection, control

Description

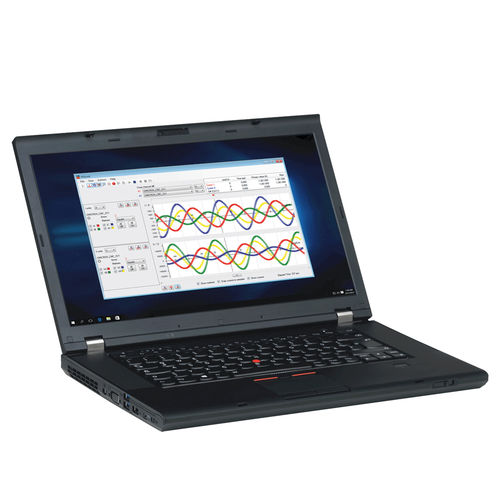

is a measurement and testing tool for protection engineers and IED developers working with IEC 61850 Sampled Values. SVScout subscribes to the Sampled Values streams from one or multiple merging units and displays the waveforms of the primary voltages and currents in an oscilloscope view. It supports Sampled Values according to the implementation guideline of the UCA International Users Group with 80 samples per cycle.

The functionality of SVScout covers many different tasks reaching from the simple display of Sampled Values streams to the detailed investigation of a merging units performance. For example, the software can be used for commissioning or for testing and developing of merging units.

Key features

Simultaneous investigation of multiple IEC 61850 Sampled Values streams
Calculation of RMS values and phase angles (phasors)
Display of phasor diagram
Recording of Sampled Values in COMTRADE format
Printable reports summarizing the essential information from a measurement
Detailed information about a selected Sampled Values stream (zero crossings, individual values, etc.)
Analysis of the time distribution and jitter of data packets (SVScout Enhanced)
Special network adapter for highly accurate and time synchronized packet capture (SVScout Enhanced)

Applications

Merging Unit Development
Merging Unit Evaluation
Systems Commissioning
