Electric cable hoist double-girdercompactlightweight
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Other characteristics
- double-girder, compact, lightweight, European standard, heavy-duty, for materials handling, foot-mounted, for metallurgical applications, variable speed lifting, trolley, motorized
- Voltage
- 380 V
- Number of strands
- 2, 4
- Capacity
1,250 kg
(2,755.78 lb)Min.: 125 kg
(275.58 lb)Max.: 12,500 kg
(27,557.78 lb)- Lifting height
Min.: 6 m
(19'08" )Max.: 20 m
(65'07" )- Speed
Min.: 6 m/min
Max.: 20 m/min
- Lifting speed
Min.: 6 m/min
Max.: 20 m/min
- Lowering speed
Min.: 6 m/min
Max.: 20 m/min
Description

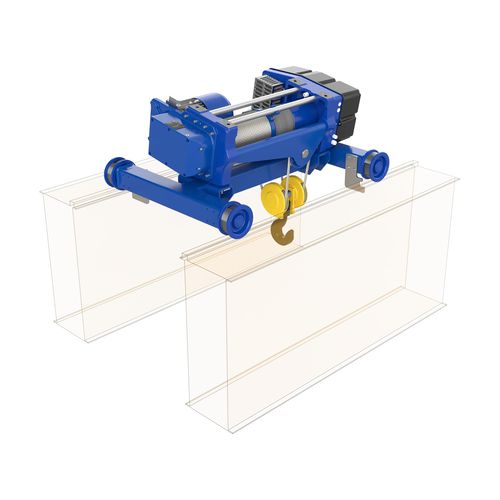

Mounted on double-girder bridge cranes, the hoist is placed on the trolley above the girders to achieve maximum hook stroke. It is possible to switch from placed to suspended configuration, and vice versa, at any time to meet new or changed requirements.
The H series electric hoists are one of the top products in the OMIS range and represent the most advanced and versatile response on the market to the industrial requirements for this type of equipment. Designed and manufactured by one of the world's leaders in lifting solutions, they naturally integrate perfectly in complete and efficient systems with other OMIS solutions, enhancing their performance to the maximum.
