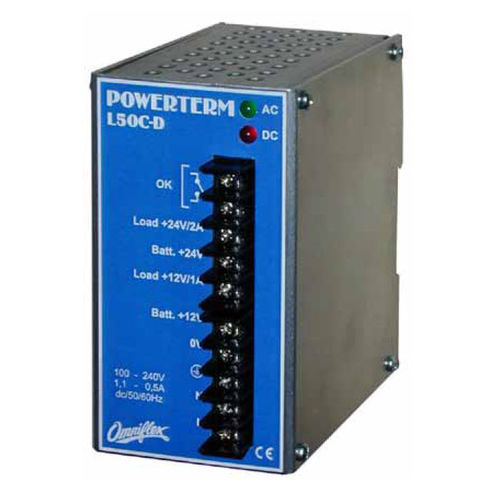

DIN rail-mounted battery charger L50C-D

lead-acidautomatic

-True 12/24Volt Split Battery Charge Equalisation -Under-voltage cut-out to protect battery from deep discharge. -AC detect output for mains monitoring. -Universal 85-264Vac mains supply -DIN Rail mounting with small panel footprint -Temperature Compensated Float Voltage under ambient changes Powerterm L50C-D 85-264Vac. 24Vdc 2A Load 12Vdc 1A Load Battery Backed instrument power supply/charger. DIN Rail mount. The L50C-D is a combined Power Supply and Battery Charger for small uninterruptible instrument supply applications where 12 Volts and 24 Volts are required. Providing both 24 Volts and 12 Volts in battery-backed systems can be inconvenient and costly. While 12 Volts is available in 24 Volt battery systems by centre-tapping the two series connected 12Vdc batteries, until now this has been impractical to use because of the different charging requirements of the two batteries. The L50C-D dual voltage charger now makes this possible by the provision of true split rail battery charging to provide balanced charging to both batteries even when 12 Volts loads are tapped from the battery pack. Applications include RTUs, dataloggers, remote field instruments and alarm systems where the requirement exists to power both 12 Volt radios and 24 Volt instruments. This DIN rail mounted product is ideal for providing 24Vdc power to instrument systems and 12V Power to battery powered radios. BATTERY MANAGEMENT During prolonged power outages, the back-up batteries will eventually discharge. If the load remains connected, the batteries can enter their "deep" discharge phase, which can cause irreparable damage to the batteries, and reduce their capacity and life expectancy.
