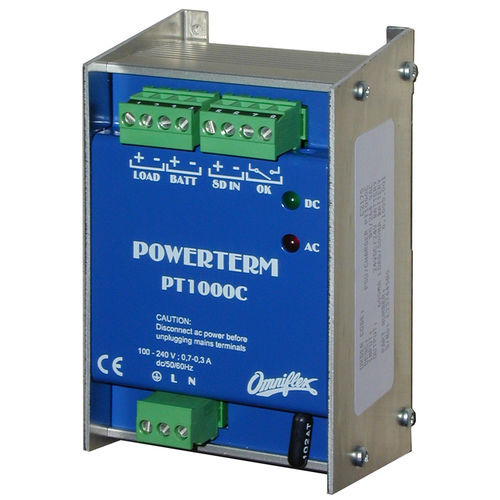

DIN rail-mounted battery charger PT1000C

lead-acidautomatic

-Dual-mode SLA battery charging -Under-voltage cut-out to protect battery -Temperature compensated -Over-current limited -AC Detect output Powerterm PT1000C 85-264Vac. 24Vdc 0.5A Load/0.5A charge Battery Backed instrument power supply/charger. Din Rail or surface mount QTY Discount 10-24 less 5% , 25 upward less 10%. The PT1000C is a combined Power Supply and Battery Charger system with integrated standby battery management ildeally suited for small uninterruptable instrument supply applications. Just connect mains supply, standby battery and load for an industrial grade standby power supply system. This DIN rail mounted product is ideal for providing dc power to instrument systems where battery backup is necessary to ensure continuous system operation during power failure. Applications include RTUs, dataloggers, remote field instruments, alarm systems and access controllers. Managing battery-backed systems for optimum backup time and battery life can be tricky and expensive. This product incorporates many features that make installing such systems simple and foolproof. Batteries are capable of delivering enormous currents under system fault conditions that can damage wiring and equipment. The PT1000C incorporates an autoresettable load cutout, which disconnects the load under over-current fault condition. During prolonged power outages, the back-up battery will eventually discharge. If the load remains connected, the battery enters its deep discharge phase, which can cause irreparable damage to the battery, and reduce its capacity and life. The PT1000C incorporates an undervoltage cutout that disconnects the load when the battery voltage begins to fall.
