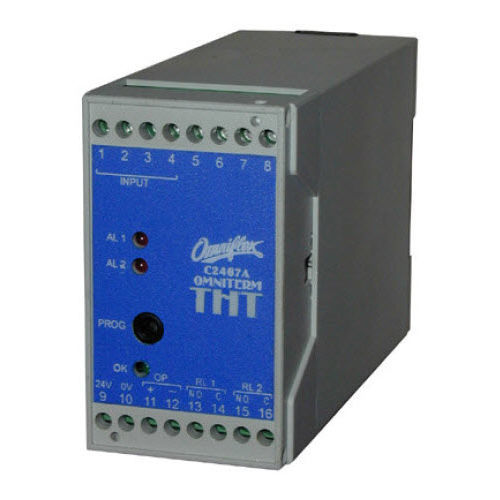

Frequency transmitter THT

-Accepts pulses from NAMUR prox switches, NPN/PNP transistors, contacts -Two Independant Trip Relay Outputs -24Vdc Powered -0 to 20mA; 0 to +-10Volts; 0 to +-10mA; or pulses out -Certified to IEC61508 SIL1 Safety Standard -EMPHASIS ASSESSED FOR USE IN THE UK NUCLEAR INDUSTRY Omniterm THT Frequency Input Transmitter with 2 Software Settable Limit Alarms/Trips/Re-transmit (24Vdc Powered) OVERVIEW The Omniterm THT is a universal frequency input transmitter and dual trip amplifier, combining all the features of the Omniterm THZ FrequencyTransmitter and TTP dual Trip Amplifier in a single product. Use the THT where you need both a frequency monitor as well as two alarm/trip setpoints from a single frequency input. The THT directly accepts NAMUR proximity switches, contacts, transistors, and tacho signals (user configurable).  This instrument uses easy software configurability without the need for any calibration to set any input and output signal type and range. Setpoints are set directly in engineering units using the same software configuration tool.
