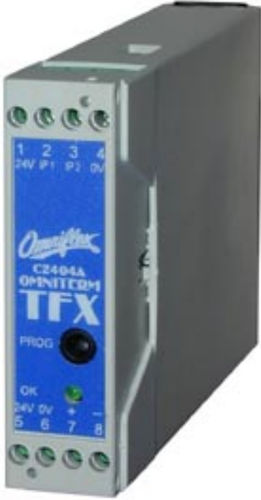

Industrial analog signal transmitter TFX

safetyDIN rail4-20 mA

-Select from a wide range of computation functions -Fully configurable by the user -Accepts two 4-20mA or 1-5Vdc inputs -One universal 0-20mA / 0 to +-10V / 0 to +-10mA Output -Output isolation to 1500Vac -Ratio and "Rate of Change" monitoring built-in -Certified to IEC61508 SIL1 Safety Standard -EMPHASIS ASSESSED FOR USE IN THE UK NUCLEAR INDUSTRY The OMNITERM TFX Special Function Module is ideal for those special applications where mathematical computations are required on your analogue signals. The TFX accepts two 1-5V or 4-20mA inputs and provides one universal output OVERVIEW The OMNITERM TFX Special Function Module is ideal for those special applications where mathematical computations are required on your analogue signals. The TFX accepts two 1-5V or 4-20mA inputs and provides one universal output The output can be configured for unipolar or bipolar outputs of current or voltage from ±1mA to ±10mA; 0-20mA; or ±1V to ±10V, as well as pulse outputs for totaliser and frequency translation applications This module uses advanced state-of-the-art digital measurement techniques, combined with extremely user friendly software configurability for best ease of use without factory required setup when ordering Full output isolation to 1500Vac ensures trouble-free installations. MATHEMATICAL FUNCTIONS The Omniterm TFX comes equipped with a wide selection of common mathematical functions. When combined with the user configurable 32 point linearisation table, this powerful computation module can be used to solve a wide range of signal processing applications such as belt slip monitoring, dual-redundant analogue inputs, ratio monitoring, rate-of-change monitoring etc. etc
