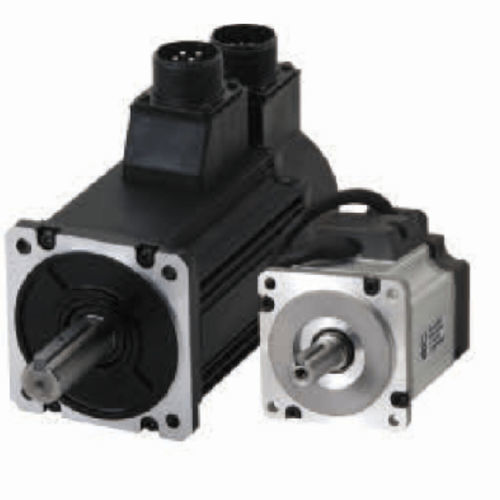

Stepper servomotor G seriesAC220 Vwith brake
Add to favorites
Compare this product
Characteristics
- Type
- stepper, AC
- Voltage
- 220 V
- Configuration
- with brake, compact, flat, cylindrical
- Protection class
- IP65
- Power
Min.: 0.05 kW
(0.07 hp)Max.: 1 kW
(1.36 hp)- Torque
Min.: 0.16 Nm
(0.11801 ft.lb)Max.: 8.62 Nm
(6.357786 ft.lb)- Rotational speed
2,000 rpm, 3,000 rpm
(12,566.3706 rad.min-1, 18,849.5559 rad.min-1)
Description
A wide range of compact servo motors to meet all application needs. When used with a SmartStep 2 drive, the G-series servo motors offer the simplicity and cost-effectiveness of a stepper with the added advantages of a servo system.
Peak torque 300% of continuous torque during 3 seconds or more depending on model
Servo motors supported by SmartStep2, G-Series and Accurax G5 servo drives
Cylindrical and Flat servo motors types are available
Encoder accuracy of 10,000 pulses incremental as standard and 17-bit absolute
IP65 as standard and shaft oil seal available
Motors with brake as option
