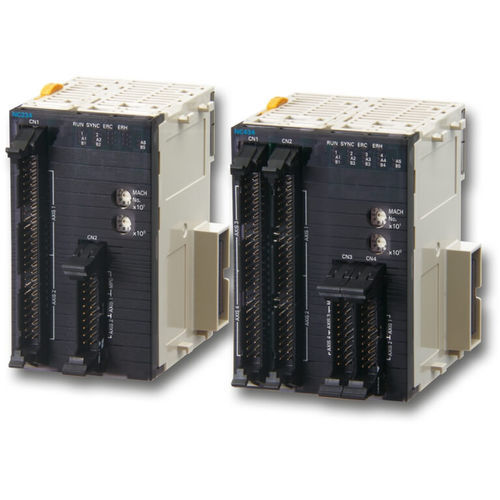

2-axis positioning controller CJ1W-NC_4

4-axissynchronousstepper

2 or 4-axis point-to-point positioning controller with pulse train output and motion control unit functionality The NC motion controllers support positioning control via pulse-train outputs. Positioning is performed using trapezoidal or S-curve acceleration and deceleration. Ideal for controlling simple positioning in stepper motors and servos with pulse-train input. When the CJ1W-NC__4 unit is used in a CJ2 CPU, it can perform also synchronous operation by use of electronic CAMs and other function blocks. Position and speed control Linear interpolation and feeder control function Electronic CAM profiles and axes synchronisation Positioning of 500 points done from memory Programming languages: ladder, function blocks
