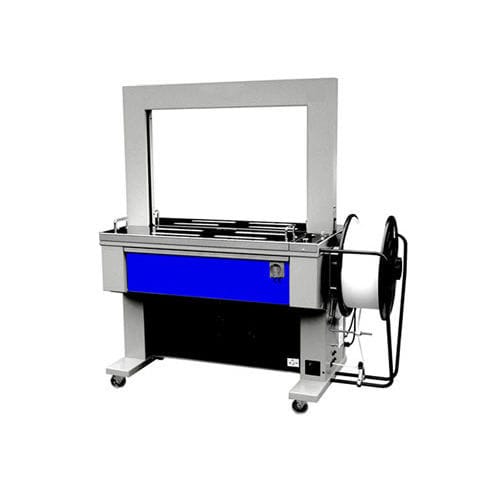

Automatic strapping machine SM 601 D

for cardboard boxespackagefor polypropylene straps

Equipped automatic strapping machine: loop ejector Strap tensioning regulation with electromagnetical friction Automatic roll change from the outside Strapping a minute 26 with launche device Standard arch850 x 600 dimensionable if request Tensioning strap from 7 to 70 Kgs. Electronical regulation Used strap 9/12 mm. polypropylene thickness 063 (recommended) Working table height 810 mm. Standard colour grey-blue sealmac Working tables in steel with rollers Disobstructions serial RESET Start with pedal, button or photocell on working table. Inside strap core 280 mm. (200 mm. If request) Mechanical group and arch completely in steel. Control panel located on the operator side Standard voltage 220V monophase/50 Hz./1,2 Kw. Overall dimensions (L x W x H) 1430 x 620 x 1540 mm. Machine weight 220 kg. Security standards according to CE regulations. Max package weight 100 Kg Minimum package 130 X 20 (W x H) OPTIONAL SM 601 DS inox Frame in stainless steel SUS 304 Smooth table Without rollers Arches Dimensionable if request with addictions of 200 mm. Double pedal For use on both sides with flying pedal Voltage 380 V triphase
