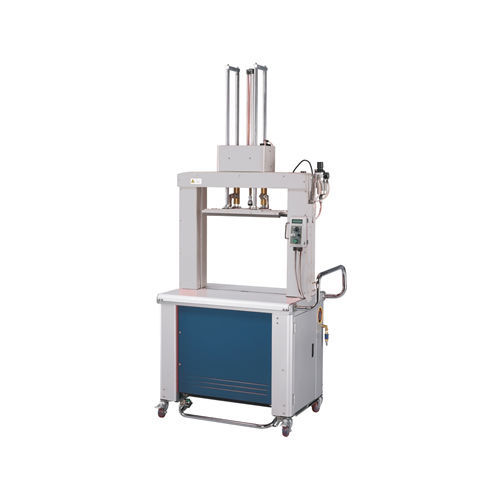

Strapping machine with press SM 702 59 Pautomaticfor parcelpackage
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Product applications
- for parcel, package
- Type of strap
- for polypropylene straps
- Power supply
- 220V single phase
- Sector
- for the packaging industry
- Other characteristics
- high-speed, with press
- Rate
65 p/min
- Overall height
1,305 mm
(51.4 in)- Overall width
840 mm
(33.1 in)- Depth
650 mm
(26 in)- Package width
70 mm
(2.76 in)- Package height
20 mm
(0.79 in)- Strap width
5 mm
(0.197 in)- Strip thickness
0.45 mm
(0.02 in)- External coil diameter
480 mm
(19 in)- Power
0.5 kW
(0.68 hp)- Clamping tension
Max.: 32 kg
(70.55 lb)Min.: 0 kg
(0 lb)- Weight
150 kg
(330.69 lb)
Description
High speed 5 mm automatic strapping machine:
over 65 strapping a minute
strap 5 x 045 inside core 200 diam. external 480 mm.
Standard arch 650 x 500
Strap tensioning from 0 to 32 Kgs. Electronically adjustable
Soft tensioning for delicate parcels
Automatic disobstruction and loop ejection
Start with fixed pedal or button control panel side
Automatic charge and change roll on the side of the machine
Working table height adjustable from 820 to 920 mm.
Opens wide for quick inspection and maintenance
Four wheels (two of them are locking)
Series fixed frontal bar pedal on each model
OPTIONAL
arches According to the list
SM 702 P Double parallel press version
