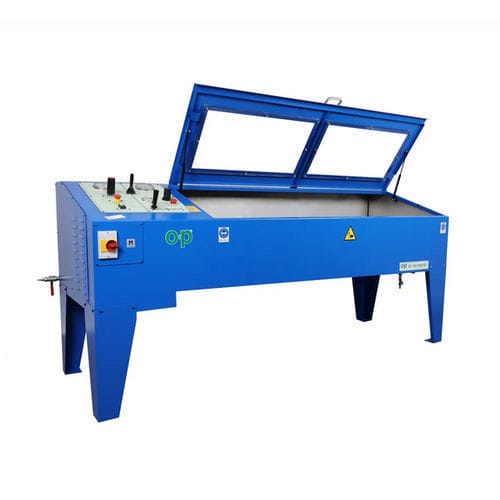

Pressure test bench BC1500E/WATER

manualhosestainless steel

Test bench up to 1500 bar, for testing both hydraulic and industrial low-pressure hoses from 10 bar up. The BC1500E/WATER is simple to use and intuitive to operate: pressure control and discharge, testing and liquid filling are manually performed. The bench is provided with a ¼'' BSP quick coupling for hose connection; 3/8'' to 2'' adapters are available upon request. Equipped with two analog pressure gauges for reading the pressure. Chamber and components are entirely of stainless steel to ensure the best test conditions and guarantee the longevity of the testing bench. Product specifications could be modified without prior notice. - PRESSURE CONTROL: Manual - TEST PROCEDURE: Manual - TYPE OF DRIVE: Pneumatic/electric intensifier - TESTING LIQUID: Water - MANIFOLDS N.: 1 - LIQUID FILLING: Manual - FILLING RATE: 4 Lt/min - PRESSURE RELEASE: Manual - STANDARD TESTING CHAMBER DIMENSIONS: 2000x846 mm (78.7''x33.3'') - BENCH DIMENSIONS: 2730x1055x1211 mm (107.5''x41.5''x47.7'') - WEIGHT: 276 KG (608.5 Lbs) - SHOCKPROOF CONTROL WINDOWS: incl. - DELIVERY FILTER: incl. - OPTIONAL: PRESSURE REPORT KIT (OPTIONAL) Technical Specifications: - Maximum test pressure: 1500 bar - Pressure control: Manual - Test procedure: Manual - Drive type: Pneumatic/electric intensifier - Testing liquid: Water - Number of manifolds: 1 - Liquid filling: Manual - Filling rate: 4 liters/minute - Pressure release: Manual - Standard testing chamber dimensions: 2000x846 mm (78.7''x33.3'') - Bench dimensions: 2730x1055x1211 mm (107.5''x41.5''x47.7'') - Weight: 276 kg (608.5 lbs) - Shockproof control windows: Included - Delivery filter: Included - Optional: Pressure report kit
