voltage measuring module
SMU32

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
voltage measuring module voltage measuring module - SMU32
{{requestButtons}}

Characteristics

  • Measured value:

    voltage

Description

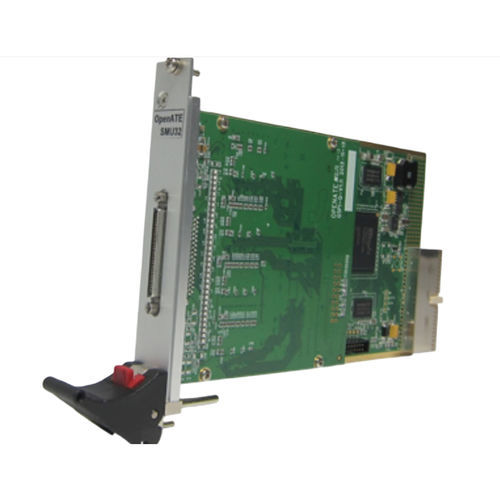

SMU32
3U PXI High Voltage PMU/DPS
32 PMU/32mA per board OR 4 DPS/512mA
-1V ~ +10V per channel
FV/MI,FI/MV,FV/MV,FI,MI

Description
The SMU32 is a low cost solution for V/I source and measurement. The SMU32 offers PMU/DPS in a compact, 3U PXI form factor. The SMU32 supports -1V to +10V +- 32 mA FVMI/FIMV modes. 8 PMUs can be ganged to DPS for high current driving.

Compatibility
All OpenATE Interfaces PXI cards comply with the PXI Specification 2.0 (issued Aug. 2000)

Software
The SMU32 is supplied with API .

Application
• Automatic Test Equipment(ATE)
• Open/Short Tester
• Power supply for electronics device
