3U PXI High Voltage DPS
• 16-bit source/18-bit measure resolution
• 0 ~ +12 V per channel
• 8 DPS / 0.5A per channel
• 8 CHs V/I pulsing output
• 16-CH Relay Outputs
• 8-CH digitizers designed
• 8-CH 18-bit high resolution A/D converter
• High measurement speed (250k s/S)
• Software average measurement function for
small signal
• API

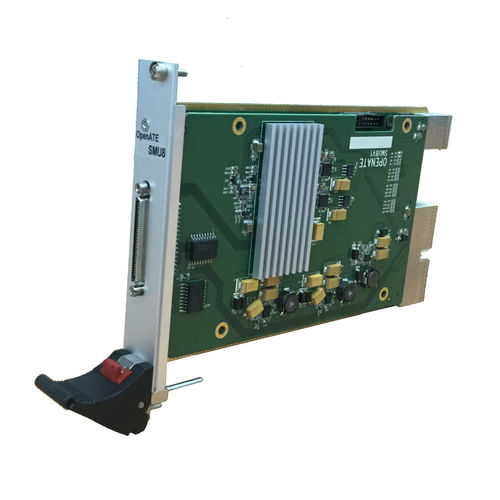

The SMU8 offers high voltage DPS in a compact, 3U PXI form factor.
The smu8 supports 0V to +4V 0.5A or 0V to +12V 25.6mA with FVMI, FVMV, FIMV, FIMI modes.
8 channel can be ganged to support high current driving.
Application
• Automatic Test Equipment (ATE)
• Power supply for electronics device
• Semiconductor test
• LED / laser diode test
• Battery test
• Solar cell test
• Electric vehicle test
• Avionics test
• Power electronics test
• Sensor test
Supported Operating System
• Windows XP/7/8/10 x64/x86
