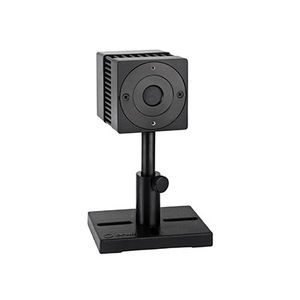

The RM9 radiometer system is a sensor and optical beam chopper combination for measuring the power of very low level CW or quasi CW light sources. The RM9 sensor has a pyroelectric element to measure a wide dynamic range of radiation, from <100nW to 100mW. It has an 8mm aperture and covers the spectral range from 0.15µm to 12µm. The system comes with the RMC1 chopper that is placed between the source and the RM9 sensor.
Specification
Absorber Type: Pyroelectric with Chopper
Aperture: Ø8mm
Spectral Range: 0.15-12µm
Power Range: 100nW-100mW
Energy Range: N.A.
Backscattered Power: N.A.
Dimensions: Ø62 W x 21 D (mm)
Max Pulse Energy: N.A.
Max Average Power Density: 5W/cm²
Response Time: 3.5 s
Max Energy Density (for <100ns): N.A.
Max Energy Density (for 2ms): N.A.
Max Average Power: 100mW
BeamTrack Functions: N.A.
Compliance: CE, China RoHS
