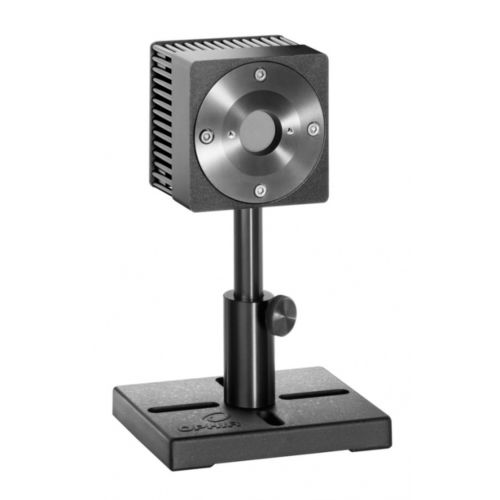

Laser power sensor 30(150)A-BB-18

thermal

The 30(150)A-BB-18 is a general purpose thermal power/energy laser measurement sensor with an 17.5mm aperture. It can measure from 30mW to 30W continuously and to 150W intermittently. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface. Specification Absorber Type: Broadband Aperture: Ø17.5mm Spectral Range: 0.19-20µm Power Range: 30mW-150W Energy Range: 20mJ-100J Dimensions: 64 L x 64 W x 49 D (mm) Max Pulse Energy: 100J Max Average Power Density: 12kW/cm² Response Time: 1.2 s Max Energy Density (for <100ns): 0.3J/cm² Max Energy Density (for 2ms): 10J/cm² Max Average Power: 150W Compliance: CE, China RoHS
