Barcode scan engine MDL-1500

barcode scan engine
barcode scan engine
barcode scan engine
barcode scan engine
Add to favorites
Compare this product


Characteristics

Options
barcode

Description

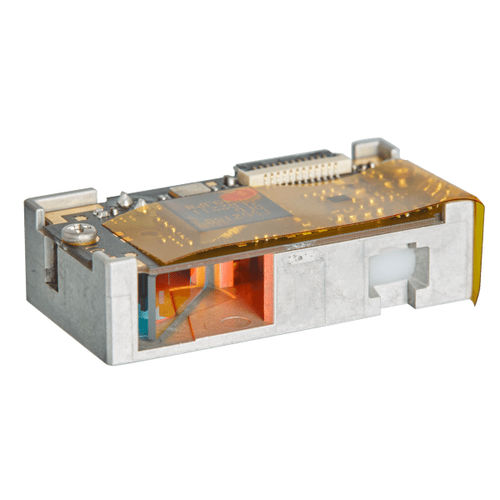

The MDL-1500 is a very flat and very fast laser scan engine. Furthermore, this engine scans barcodes at a speed of a 100 scans per second and automatically decodes them with the integrated decoder. The communication output can be RS-232 or USB, so if you are looking for a versatile engine this might be it! Extremely flat The MDL-1500 is a barcode laser scan engine with a design so flat that it is easily fitted in any OEM or ODM project. Additionally, it scans at a high rate of a 100 scans per second and can read all 1D barcodes. The 12 pin FFC connector makes it possible for the engine to communicate the scanned date in either RS-232 or USB (-HID or -COM). Furthermore, the engine measures a mere 8 mm in height, 28 mm in width, 14 mm in depth and a weight of only 3.9 g it is clear that the physical aspects are astonishing. While powering this engine with a battery it ensures a long period of use due to the low energy consumption. It is only 3V. Development board For the testing and evaluating of this scan engine we have a development board, the MEK-3100. This separately sold development kit enables you to evaluate the scan engine without the need to develop any electronics or cables. Take a look at the kit here. For more detailed information please read the leaflet. This leaflet contains all technical specifications, if you have questions or require more information, please feel free to contact us. Features The MDL-1500 comes with these core features: 100 scans per second Flat and compact design Decoded USB or RS-232

Catalogs

MDL-1500
MDL-1500
2 Pages
