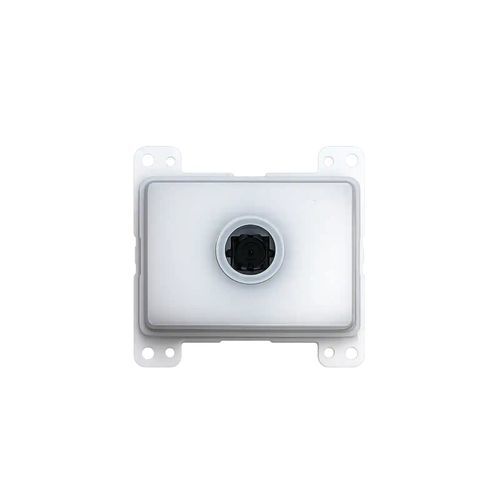

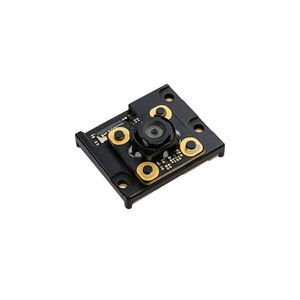

Fixed data matrix and barcode reader M-12M

omnidirectional1D2D

Short description
The M-12M is a compact OEM 2D imager by Opticon with a global shutter CMOS sensor, ultra wide-angle optics, customizable multi-color LED illumination and USB/RS232 interfaces; supports up to 120 fps for reliable reading of 1D/2D/OCR codes on labels, mobile screens and moving objects.

Overview
The M-12M combines high-speed barcode capture and flexible lighting in a small form factor for integration into fixed-mount, kiosk and embedded applications. Its global shutter sensor and sunlight-resistant optics enable omnidirectional scanning of printed and digital codes with motion tolerance and improved performance on low-quality or damaged barcodes. The configurable full-color indicator and floodlight LEDs provide user-facing illumination and status signaling for payment terminals and kiosks.

Highlights

• High-speed 2D CMOS imager with omnidirectional scanning up to 120 fps
• Reads 1D, 2D and OCR codes from labels, mobile devices and moving targets
• Robust decode engine for low-contrast, damaged or motion-blurred barcodes
• Ultra wide-angle optics for close-range QR reads and larger-code capture from ~40–45 mm
• Designed for OEM and fixed-mount integration in kiosks and terminals
• Sunlight-resistant optical filter and industrial sensor operable up to ~120,000 Lux
• Compact form factor suitable for payment terminals, kiosks and embedded equipment
• Uniform illumination design reduces glare and brightness variation across the scan field
• Full-color indicator and floodlight LED system (3-colour LEDs × 4) with customizable status indication
• Manual and auto trigger modes
• Advanced data editing: capture up to 16 codes across multiple images simultaneously
• Interfaces: USB (HID, COM) and RS232

Other models in the family
The M-12M belongs to a family of fixed-mount and OEM scanners including models such as M-12 and MDI-12, offering different form factors for varied integration needs.

Suitable applications

• Self-service kiosks: ticketing, check-in, ordering and information kiosks requiring reliable code reading and user illumination
• Payment terminals: fast reading of payment QR codes, loyalty cards and digital vouchers
• Retail & customer engagement: mobile coupons, loyalty programs and self-checkout with visual feedback
• Access control & ticket validation: digital and printed credential verification for transport, events and parking
• OEM & embedded solutions: smart lockers, vending machines, medical devices and other embedded systems
• Industrial & automated systems: high-speed scanning and motion tolerance for automated workflows
• Outdoor & high-brightness installations: reliable operation in bright environments and outdoor kiosks

Additional information
Form factor: OEM
Reading type: 2D
Communication interface: RS232, USB
Light source: 3-colour LED × 4 pcs
Scan method: CMOS area sensor, 640 × 480 pixels (global shutter)
Scan rate: Up to 120 fps

Technical specifications

• Model: M-12M
• Brand: Opticon
• Form factor: OEM (embedded / fixed mount)
• Imager: CMOS area sensor, 640 × 480 pixels (global shutter)
• Scan rate / frame rate: Up to 120 fps
• Reading capability: 1D, 2D and OCR; omnidirectional scanning
• Optics: ultra wide-angle system; typical larger-code read distance approx. 40–45 mm
• Illumination: uniform illumination; full-color indicator and floodlight LED system (3-colour LEDs × 4)
• Interfaces: USB (HID, COM) and RS232
• Trigger modes: manual and auto
• Special features: advanced data editing (capture up to 16 codes across multiple images); performance on low-quality, damaged or moving barcodes; sunlight-resistant optical filter enabling operation up to ~120,000 Lux
• Use cases: kiosks, payment terminals, retail, access control, OEM embedded systems, industrial automation, outdoor/high-brightness installations
• Integration note: compact form factor for easy OEM and kiosk integration
