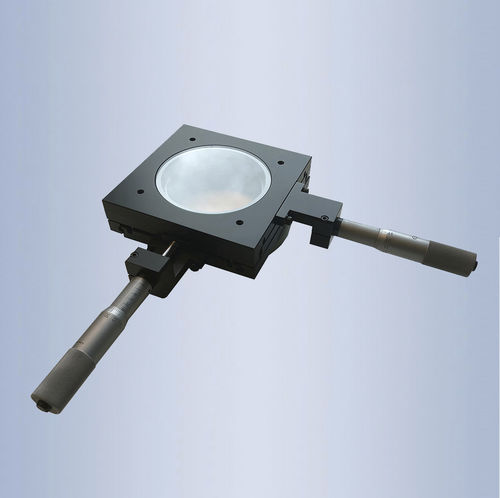

XY positioning stage 100-MS50-GANmanual2-axismicrometer-driven
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- manual
- Number of axes
- 2-axis
- Other characteristics
- micrometer-driven, precision, for microscopes, measurement
Description
Opto´s Measuring Stage 50 x 50mm analog is designed for incident and transmitted light application.
Technical Features
- Glass plate D=100mm for incident and transmitted light application
- Cover plate 135 x 135mm
- Stage height = 35mm
- Maximum load 10kg
- with 2 manual micrometer spindles
Measurement range: 50mm; Resolution: 0.01mm
Opto´s measuring stages are designed solid and highly adjustable when employed. Their precision depends on the supplied micrometers screw of up to 0.001 mm.
All the stages are enclosed in a black finish, and have rubber feet as well as 4 M5 threads in the bottom side for mounting the stages on flat surfaces or tables.
Article number 100-MS50-GAN
