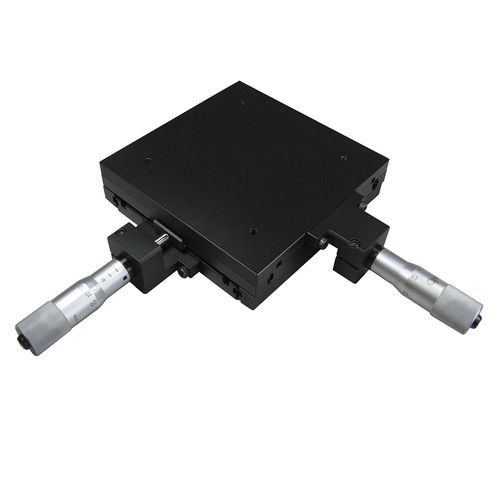

XY positioning stage 100-MS25-AN

compact

Opto's 25 x 25mm analog measuring stage is specifically designed for reflected light applications Our measuring stages are compact and extremely flexible in use. Their accuracy depends on the micrometer screws used and can be as low as 0.001mm (1µm). All stages are black surface coated and have four M5 threads on the bottom for mounting to tripod plates. Rubber feet on the bottom allow for a firm stand even on smooth surfaces. Opto´s Measuring Stage 25 x 25mm analog is designed for incident light application. Technical Features: - Cover plate 135 x 135mm - Stage height = 35mm - Maximum load 10kg - with 2 manual micrometer spindles Measurement range: 25mm; Resolution: 0.01mm Item-No. 100-MS25-AN
