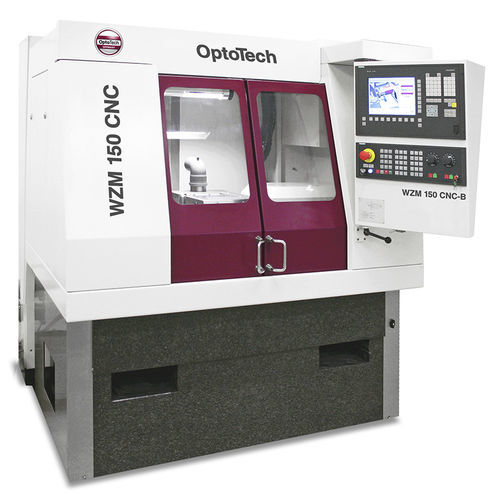

Centering machine for precision optics WZM 150 CNC

Ranges of Application For special optics blocked on spindles or special runners Highlights Designed for centering operations with maximum precision and flexibility The concept of an exchange spindle edging machine has been incorporated into a modern horizontal CNC machine base. This enables easy loading of spindle/workpiece units into a machine with ideal processing kinematics The lenses can be aligned and blocked on the optional AZP 200 HP blocking unit. The spindle, with the optic already attached, is then transferred into the WZM 150 CNC for an edging process of highest precision Machine base made of granite All available centering spindles can be adapted All linear axes are equipped with linear drives and Heidenhain absolute scales, guaranteeing maximum precision, flexibility and reliability of operation Options: C-Axis Package for Truncations; Workpiece Table with Integrated B-Axis (WZM 150-B) Performance Data Working Range ∅ 10 to 150 mm (Depending on Tool) Tool ∅ 120 to 180 mm Cutting Speed 0 to 30 m/s Variable Speed
