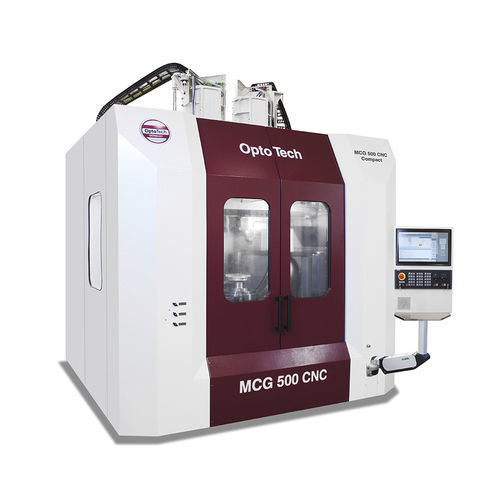

5-axis CNC machining center MCG series

4-axisverticaldrilling

MCG 150 CNC Multi spindle concept for pre- and fine grinding of spheres and aspheres. Even grinding of complex shapes is possible High flexibility due to up to 5 CNC axes and an innovative tool concept Machine base made of cast iron for highest rigidity Interfaces to Taylor Hobson Form Talysurf, Mahr MarSurf, Mitutoyo Measuring System, OptoTech Workshop Interferometers of the OWI XT and OWI ASPH Series (Others available on request) Options: C-Axis; 3D-Measuring Pin; Exhaust Filter System for Mist Collection; Software Package for Cylinder and Applications like Drilling, Sawing or Freeform Processing and Edging MCG 500 / 1000 CNC 5-Axis machine center for generating plano surfaces, spherical surfaces (lenses), aspheres, optical freeform surfaces and centering functions Interfaces to Taylor Hobson Form Talysurf, Mahr MarSurf, Mitutoyo Measuring System, OptoTech Workshop Interferometers of the OWI HP and OWI ASPH Series (Others available upon request) Modular assembly and a variety of expansion levels guarantee maximum variability Full online-connection of the whole working system (MCG Series with MCP Series and Metrology). Even freeform surfaces can be fine corrected by correction dataset Highly dynamic AC servo drives for X-, Y- and Z-Axis. Positioning via high resolution linear scales A-Axis driven by high precision racks and pinions via AC servo drives Siemens Sinumerik 840 D solution line CNC controller Microsoft Windows 7 operating system with OptoTech user interface
