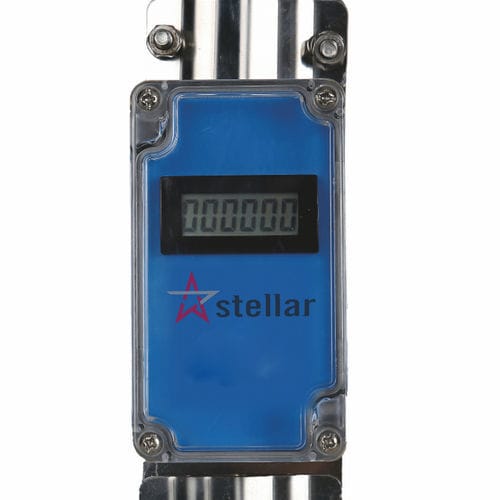

Lightning strike counter STELLAR
digitalIP65IP67

lightning strike counter
lightning strike counter
Add to favorites
Compare this product


Characteristics

Type
lightning strike
Display
digital
Protection level
IP65, IP67

Description

STELLAR Digital Lightning Strike Counter is designed for takes all conducted lightning strikes under record. Likewise lightning terminals and grounding systems, lightning strike counters should alse be durable to extreme currents. STELLAR Digital Lightning Strike Counter works with the arrested strikes own current and doesn't need any external battery. Counting digits can be modified as to display 6 numbered digital digits. Light and being accordance with IP65 level durability makes STELLAR a perfect instrument to complete a lightning protection system. ►High voltage impulse durability ►Doesn't require external battery ►High quality Polycarbonate components ►Testable with ORBITAL Testers ►Fully compatible with the standards - SPECIFICATIONS :   ATTRIBUTES   - Current Sensitivity : 1500 A 8/20 ms impulse - Operating Range : 1500 A, Max. 200kA 8/20 ms - Displaying : Mechanical 3-7 Digits - Dimensions (mm) : 100(D) x 100(H) x 55(W) - Weight : 0.68 kg - Mounting/Connecting : Double Ø4 Cable, 50 x5 mm tape - Construction : Polycarbonate enclosure - Water Resistance : IP67 - Operating Temperature : -15C to 65C
