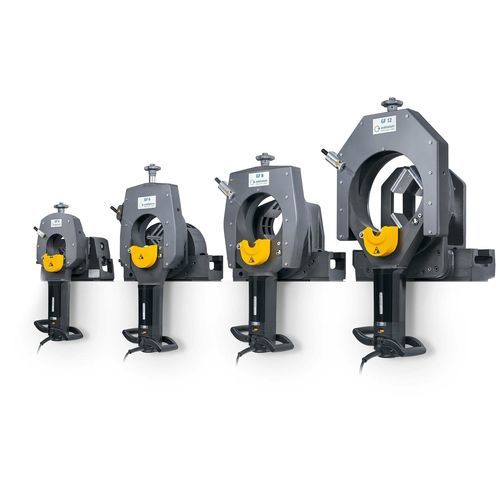

Motorized pipe cutting and beveling machine GF

portable

Product Overview
Right-angled, burr-free and deformation-free pipe cuts for weld preparation. Suitable for thick-walled pipes. Planetary cold-cutting process preserves material structure. Available with manual (MVM) or automatic (AVM) feed modules; integrated beveling option.

Variants

• GF 4 (MVM / AVM)
• GF 6 (MVM / AVM)
• GF 8 (MVM / AVM)
• GF 12 (MVM / AVM)

Pipe Outer Diameter

• GF 4: Pipe OD 12.00 – 120.00 mm; Wall thickness 1.00 – 9.00 mm
• GF 6: Pipe OD 21.30 – 168.30 mm; Wall thickness 1.50 – 15.00 mm
• GF 8: Pipe OD 114.00 – 230.00 mm; Wall thickness 2.00 – 10.00 mm
• GF 12: Pipe OD 154.00 – 325.00 mm; Wall thickness 2.00 – 10.00 mm

Machine Weight

• GF 4: 61.3 kg
• GF 6: 92.7 kg
• GF 8: 102.5 kg
• GF 12: 138.6 kg

Key Functions & Benefits

• Weld preparation: Planetary cutting delivers burr-free, right‑angled ends and optional integrated beveling suitable for orbital and automated welding.
• Process speed: Cutting in seconds reduces cycle time; quick adaptation to pipe dimensions lowers changeover time.
• Feed options: AVM - automatic feed for continuous operation with constant feed force; MVM - manual feed with handwheel for controlled cuts.
• Handling & safety: Ergonomic motor grip, automatic shutdown after cut, stainless steel clamping jaw inserts for corrosion protection.
• Material versatility: Processes stainless steel, copper, aluminum, plastic, cast iron and high‑performance alloys (e.g., Hastelloy®, P91); optimized speed range 40–215 rpm.
• Service & reliability: Long tool life, maintenance‑friendly design and proven technology for long service life.

Characteristics / Technical specifications

• Product family: GF series (GF 4, GF 6, GF 8, GF 12)
• Cutting principle: Planetary cutting (cold cut)
• Integrated beveling: Parallel or separate from cutting
• Feed variants: AVM = Automatic feed module; MVM = Manual feed module
• Speed range: 40–215 rpm (optimized)
• Material compatibility: stainless steel, copper, aluminum, plastic, cast iron, high‑performance alloys
• Pipe OD / wall thickness ranges: see Pipe Outer Diameter block
• Machine weight per variant: see Machine Weight block
• Safety features: automatic shutdown, ergonomic grip, stainless steel clamping inserts
• Productivity features: integrated line laser for marking, quick adaptation to pipe dimensions
• Maintenance: maintenance-friendly design, quick coupling for rotary cables
