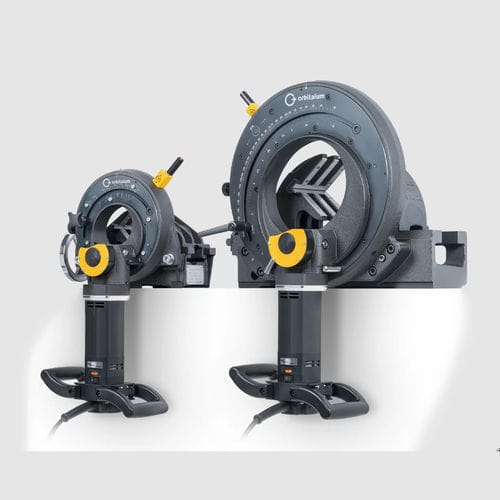

Orbital pipe cutting and beveling machine GFX 3.0

portable

Optimal preparation for the welding process: Cold, material-preserving cut – no heat input into the pipe Square, burr-free cutting surface without rework Integrated beveling function – executable in parallel or separately Saw blade-milling cutter combination possible Deformation-free clamping, even with thin-walled pipes Additional saw blade holder for cutting out pipe bends Precise cut guidance through integrated line laser High productivity: Powerful 1,200-watt motor for fast cuts High tool life thanks to modern drive system (GF10) – constant speed thanks to tachometer control Speed range 30–200 rpm – adjustable to suit material Optimized chip removal through proven vise design Tool and flex rotating cable change via quick-connect coupling Low weight for better handling Direct mounting of GFX 3.0 on workbench possible (optional with mounting plate) Simple and safe handling: Ergonomically optimized motor handle for safe operation Electronic overload protection with temperature monitoring Restart interlock in case of power failure Low noise (sound pressure level < 80 dB(A)), low vibration (< 2.5 m/s²) Wide range of applications for various materials: Suitable for stainless steel, low- and high-alloy steels, aluminum, titanium alloys, non-ferrous metals, plastics, composite materials Various saw blade diameters (63, 68, 80 mm) depending on application also suitable for solid materials (depending on GFX variant and saw blade)
