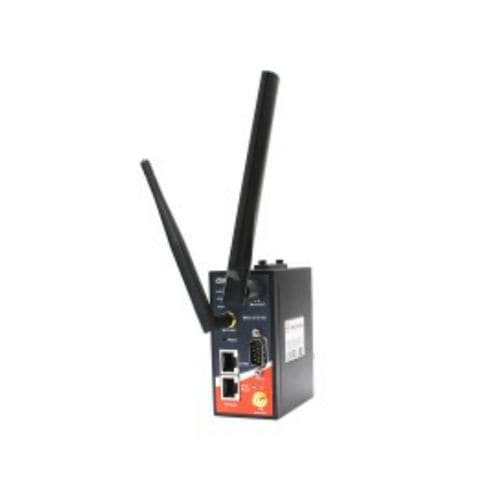

Cellular gateway IMG-4312-4G series

communicationindustrialWiFi

IMG-4312-4G is an innovative 1 port RS-232/422/485 and 4G LTE cellular Gateway with 2 port 10/100Base-T(X) port. IMG-4312-4G also provide IEEE802.11 b/g/n wifi interface which have 150Mbps link speed. It could be configured to connect to the internet by dialing up 2G/3.5G/LTE cellular modem to fulfill demands of various applications rapidly a. In addition, IMG-4312-4G can also transfer data into 5 host PCs simultaneously for backup purposes. In addition, IMG-4312+-4G also provides P.D. feature on ETH1 port which is fully compliant with IEEE802.3af PoE P.D. specification Therefore, IMG-4312-4G is one of the best solutions for applications of wireless and serial communication. Features -Provide 2xl0/100Base-T(x) port and single SIM card slot -2/3.5/4G LTE model included -High Speed Air Connectivity: WLAN interface support 802.11 b/g/n up to 150Mbps link speed -Support Open VPN, PPTP VPN -Support DHCP forwarding through PPTP function -Versatile modes 8i event alarm by e-mail. -Event warning by Syslog, Email, SNMPTrap -Redundant multiple host devices: 5 host devices:Virtual COM, TCP Server, TCP Client mode, UDP mode(4 IP Ranges) -12~48VDC power input on terminal block -1KV isolation for PoE P.D. (IMG-4312+-4G) -Rigid IP-30 housing design -Din-Rail and panel mounting enabled. -Support OpenWRT SDK for project
