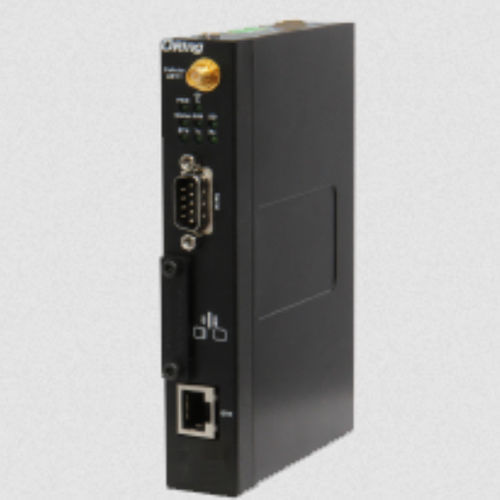

Communication gateway IMG-311DL-MN

industrialIoTwireless

IMG-311DL-MN LPWAN series is an innovative 1 port RS-232/422/485 and 2 ports digital I/O and LTE LPWAN IoT Gateway with 1 port 10/100Base-T(X) port and. It could be configured to connect to the internet by dialing up LTE cellular modem to fulfill demands of various applications rapidly a. In addition, IMG-311DL-MN can also transfer data into 5 host PCs simultaneously for backup purposes. In addition, IMG-311DL-MN also support protocol MQTT and LWM2M* for Cloud application and Modbus TCP/RTU for industrial application. specification Therefore, IMG-311DL-MN is one of the best solutions for applications of wireless and serial communication. Features Provide 1x10/100Base-T(x) port and single SIM card slot LTE CAT-M1/CAT-NB1 modem included Support 1xRS-232/422/485 in DB9 connector Support MQTT/LWM2M IoT protocol Support Modbus TCP/RTU industrial protocol Support Open VPN, PPTP VPN, IPSec. Support DHCP forwarding through PPTP function Event warning by Syslog, Email, SNMP Trap Redundant multiple host devices: 5 host devices:Virtual COM, TCP Server, TCP Client mode, UDP mode(4 IP Ranges) 2 x Digital I/O MicroSD card compliance 12~48VDC power input on terminal block Rigid IP-30 housing design DIN-Rail and panel mounting enabled. Support OpenWRT SDK for project IEEE 802.11g/n Wifi support(optional)
