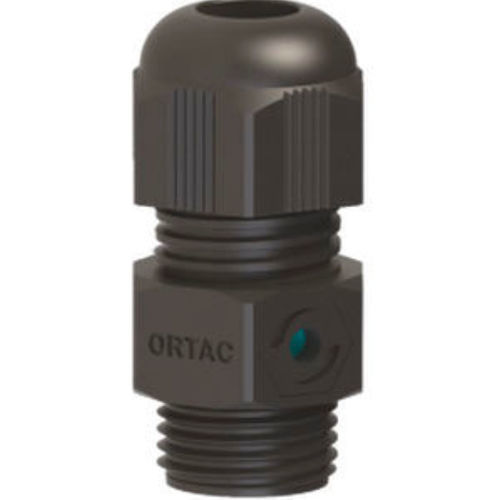

Plastic ventilation grill OMVGL01

outdoor

Product name
Ventilation Glands – Plastic (OMV/OPV series) by Ortac

Materials

• Cap nut: Polyamid PA6 V2
• Sealing ring: TPV
• Gland body: Polyamid PA6 V2
• O-ring: NBR / EPDM
• Vent part: Acrylic Co-Polymer on Nylon Support (Hydrophobic - Oleophobic)

Protection & Temperature
Protection class: IP68
Temperature range: -20 °C to +100 °C (standard) / -40 °C to +150 °C (extended)

Connection & Standards
Connection thread: Metric (EN 60423) and PG (DIN 40430)

Benefits

• Balances internal and external pressure of enclosures
• Prevents corrosion and water condensation inside enclosures
• Functions as both cable gland and venting element
• Extends product service life by protecting internal components
• High air flow performance
• Anti-vibration protection
• UV resistance available on request
• Easy to assemble
• Halogen free
• High strain relief and chemical resistance

Applications

• Industrial and electronic enclosures
• Wind & solar energy equipment
• Lighting fixtures
• Automotive and factory automation
• Railway equipment

Variants / Typical technical data (selected rows)
M 12 x 1,5 : OMVGL01 (Light Gray), OMVGB01 (Black) — H: 29 mm; GL: 8 mm; Wrench: 19 mm; Clamping Range: 4-6,5 mm; Hole Diameter: 12,30 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
M 16 x 1,5 : OMVGL02 (Light Gray), OMVGB02 (Black) — H: 33 mm; GL: 8 mm; Wrench: 19 mm; Clamping Range: 4-8 mm; Hole Diameter: 16,3 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
M 16 x 1,5 : OMVGL03 (Light Gray), OMVGB03 (Black) — H: 34 mm; GL: 10 mm; Wrench: 22 mm; Clamping Range: 5-10 mm; Hole Diameter: 16,3 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
M 20 x 1,5 : OMVGL04RS / OMVGB04RS (Light Gray/Black) — H: 40,5 mm; GL: 10 mm; Wrench: 24 mm; Clamping Range: 4-9 mm; Hole Diameter: 20,3 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
PG7 : OPVGL01 (Light Gray), OPVGB01 (Black) — H: 29 mm; GL: 8 mm; Wrench: 19 mm; Clamping Range: 4-8 mm; Hole Diameter: 13 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
PG9 : OPVGL02 / OPVGB02 — H: 33 mm; GL: 8 mm; Wrench: 19 mm; Clamping Range: 4-8 mm; Hole Diameter: 15,5 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
PG11 : OPVGL03 / OPVGB03 — H: 34 mm; GL: 10 mm; Wrench: 22 mm; Clamping Range: 5-10 mm; Hole Diameter: 19 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar
PG13,5 : OPVGL04RS / OPVGB04RS and OPVGL04 / OPVGB04 — H: 34 mm; GL: 10 mm; Wrench: 24 mm; Clamping Range: 4-9 mm or 6-12 mm; Hole Diameter: 21 mm; Average Air Flow: 70 I/H; Water Intrusion: 0,1 bar

Technical specifications

• Denomination: Ventilation Glands – Plastic
• Brand: Ortac
• Materials: Polyamid PA6 V2 (cap nut, gland body), TPV (sealing ring), NBR/EPDM (O-ring), Acrylic Co-Polymer on Nylon (vent)
• Connection threads: Metric (EN 60423) and PG (DIN 40430)
• Protection class: IP68
• Temperature range: -20 °C to +100 °C (standard); -40 °C to +150 °C (extended)
• Clamping ranges and hole diameters vary by thread size (see variant rows)
• Average air flow: high (example values listed per variant)
• Water intrusion resistance: 0.1 bar (typical)
• Features: anti-vibration protection, UV resistance on request, halogen free, easy assembly, high chemical resistance
