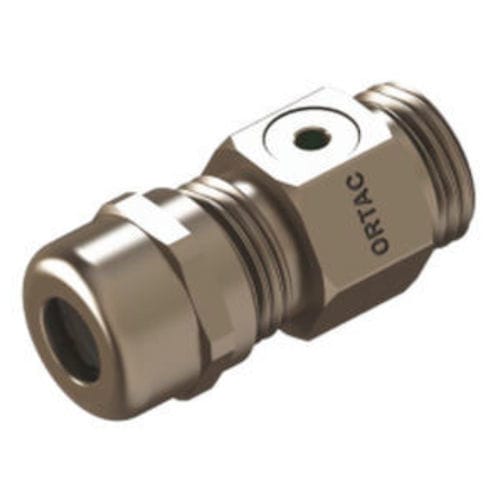

Ventilation cable gland OMBVG01

polyamidebrassnickel-plated brass

Product name
Ventilation gland – Brass / Stainless steel (AISI 303/316L) with hydrophobic vent element and IP68 protection.

Materials and components
Cap nut: Nickel plated brass or stainless steel (AISI 303/316L)
Sealing ring: TPV
Gland body: Nickel plated brass or stainless steel (AISI 303/316L)
Cable holder: Polyamide PA6 V2
O-ring: NBR / EPDM
Vent part: Acrylic co-polymer on nylon support (hydrophobic - oleophobic)
Connection thread: Metric (EN 60423) and PG (DIN 40430)
Protection class: IP68
Temperature range: -20 °C to +100 °C and -30 °C to +150 °C (variants)

Benefits

• Balances internal and external pressure to prevent enclosure deformation
• Prevents condensation and reduces corrosion risk inside enclosures
• Combines cable gland sealing with venting function
• Extends service life of electronic components by maintaining internal climate
• High airflow rates while maintaining water intrusion resistance
• Provides vibration resistance
• Quick and easy assembly on-site
• High strain relief and resistance to chemicals
• Available in multiple sizes and clamping ranges

Applications

• Industrial and electronic enclosures
• Wind and solar energy equipment
• Lighting fixtures, food & beverage equipment
• Automotive and automation systems
• Railway equipment

Technical table (metric / PG thread ventilation glands)
Header: AG Thread; Brass Code; Stainless Steel Code; H (mm); GL (mm); Wrench (mm); Clamping Range (mm); Hole Diameter (mm); Average Air Flow l/h; Water Intrusion (bar)
M 12 x 1,5; OMBVG01; OMSVG01; 31,5; 6; 17; 4-8; 12,30; 70; 0,1
M 12 x 1,5; OMBVG01L; OMSVG01L; 31,5; 8; 17; 4-8; 12,3; 70; 0,1
M 16 x 1,5; OMBVG02R; OMSVG02R; 31,5; 6; 17; 4-8; 16,3; 70; 0,1
M 16 x 1,5; OMBVG02RL; OMSVG02RL; 31,5; 8; 17; 4-8; 16,3; 70; 0,1
M 16 x 1,5; OMBVG02; OMSVG02; 33,5; 6; 20; 5-10; 16,3; 70; 0,1
M 16 x 1,5; OMBVG02L; OMSVG02L; 33,5; 8; 20; 5-10; 16,3; 70; 0,1
M 20 x 1,5; OMBVG03; OMSVG03; 35; 8; 22; 6-12; 20,3; 70; 0,1
PG7; OPBVG01; OPSVG01; 31,5; 6; 17; 4-8; 13; 70; 0,1
PG7; OPBVG01L; OPSVG01L; 31,5; 8; 17; 4-8; 13; 70; 0,1
PG9; OPBVG02; OPSVG02; 31,5; 6; 17; 4-8; 15,5; 70; 0,1
PG9; OPBVG02L; OPSVG02L; 31,5; 8; 17; 4-8; 15,5; 70; 0,1
PG11; OPBVG03; OPSVG03; 33,5; 6; 20; 5-10; 19; 70; 0,1
PG11; OPBVG03L; OPSVG03L; 33,5; 8; 20; 5-10; 19; 70; 0,1
PG13,5; OPBVG04; OPSVG04; 35; 6,5; 22; 6-12; 21; 70; 0,1
PG13,5; OPBVG04L; OPSVG04L; 35; 8; 22; 6-12; 21; 70; 0,1

Technical specifications

• Materials: Cap nut and gland body in nickel plated brass or stainless steel (AISI 303/316L)
• Sealing ring: TPV
• Cable holder: Polyamide PA6 V2
• O-ring: NBR or EPDM
• Vent element: Acrylic co-polymer on nylon support (hydrophobic - oleophobic)
• Thread standards: Metric (EN 60423) and PG (DIN 40430)
• Ingress protection: IP68
• Operating temperature ranges: -20 °C to +100 °C and -30 °C to +150 °C (depending on variant)
• Clamping ranges and airflow vary by model
• Water intrusion figures: approx. 0.1 bar (model dependent)
